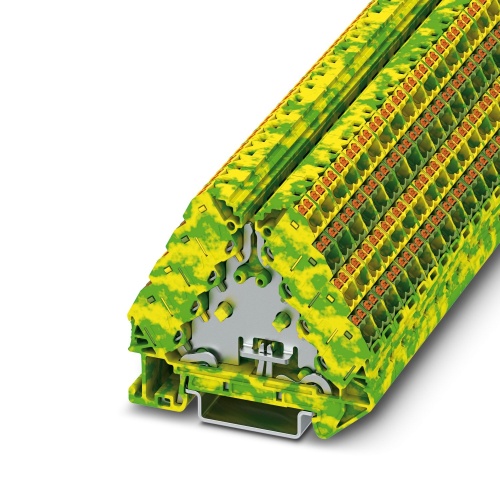

Phoenix Contact 1070018 Protective conductor terminal block PTRVB 4-PE
Normally In Stock
Code: 63298
PTRVB 4-PE Phoenix 1070018 Ground terminal block Push-in connection green-yellow Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$41.86
Sale Price
$34.88
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1070018 A protective conductor terminal block has 16 connections and two positions available for installation, utilizing a push-in connection method at the 1st, 2nd, 3rd and 4th levels. The rated cross section is between 0.14 mm2 to 2.5 mm2, with a corresponding mounting type classified as NS 35/7,5 or NS 35/15. The terminal block has a distinctive color of green-yellow.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
4
Terminal Block Width
8.3 mm
Terminal Block Number of Connections
16
Terminal Block Grounded
Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
14
Terminal Block Component Color
Green/Yellow
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Ground Terminal Block
Sub Component
Protective Conductor Terminal
Features
Up to 20% higher signal density due to the compact design
Freely configurable color-coded assignment of conductors and terminal points for intuitive and safe installation
Convenient testing with freely accessible 2.3 mm test points
Large-surface, pitch-free marking
Reduction in logistics costs with the uniform CLIPLINE complete system accessories
Downloads
Phoenix 1070018 CAD data International.dxfPhoenix 1070018 CAD data International.pdfPhoenix 1070018 CAD data International.stpPhoenix 1070018 Manufacturers declaration International-2.pdfPhoenix 1070018 Manufacturers declaration International.pdfPhoenix 1070018 Safety note English.pdfPhoenix 1070018 Tender Text English.zip
