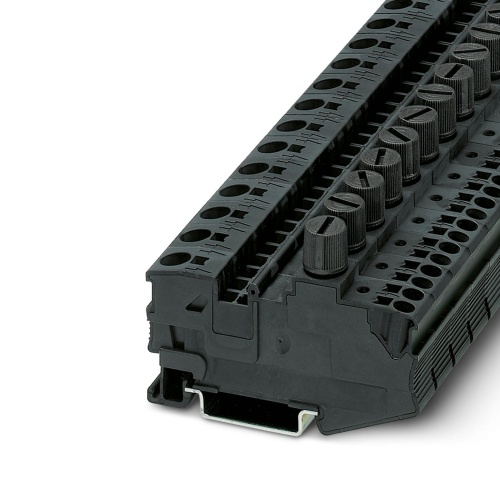

Phoenix Contact 3034248 Fuse modular terminal block DT 6/2,5-DREHSI (5X20)
Normally In Stock
Code: 63244
DT 6/2,5-DREHSI (5X20) Phoenix 3034248 Fuse terminal block Leg spring connection 500 V 10 Amp black Terminal Blocks
Condition: New
Usually ships within 7-14 days. Call for ship time.$12.19
Sale Price
$10.16
MUST BUY IN PACKS OF 25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3034248 The fuse terminal block for a cartridge fuse insert has varying dimensions, ranging from a cross-sectional area of 0.5-10 square millimeters to AWG (American Wire Gauge) sizes between 20 and 8, with a width of 12.2 millimeters and a standard color of black.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Fused
Terminal Block Width
12.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
8
Terminal Block Min Wire Size
20
Terminal Block Component Color
Black
Terminal Block Connection Method
Leg Spring Connection
Terminal Block Amperage
10 Amp
Terminal Block Fuse Type
G - 5 X 20
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Fuse Terminal Block
Sub Component
Fuse Modular Terminal Block
Features
Comprehensive product range for cartridge fuse-links, automotive flange fuses, and thermal device circuit breaker plugs
Easy potential distribution thanks to continuous function shafts
Convenient testing of fuses with test points on both sides
Quick identification of faulty fuses and fuse holders regardless of the current direction thanks to an LED status indicator
Easily accessible fuse-links are easy to replace
Same shape as the feed-through, knife, and disconnect terminal blocks
