Code: 63234

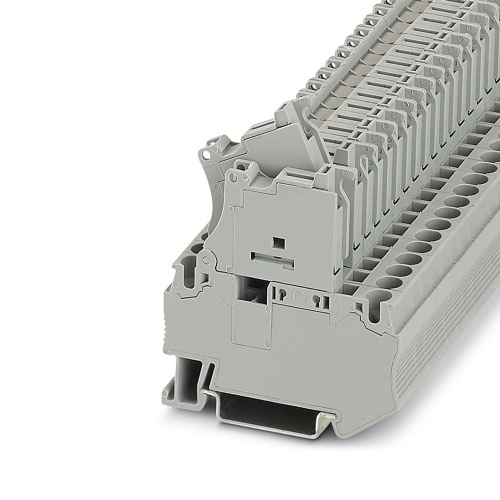

Phoenix Contact 3039890 Fuse modular terminal block ST 4-HESI (5X20) GY/GY
Normally In Stock
ST 4-HESI (5X20) GY/GY Phoenix 3039890 Fuse terminal block Spring-cage connection 500 V 6.3 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$10.24
Sale Price
$8.53
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3039890 The fuse terminal block is designed with a glass or ceramic material for the fuse and is rated for a nominal voltage of 500 V and a maximum current of 6.3 A. The connection method utilizes a spring-cage design, allowing for one-level connections, and features a specific cross-section area ranging from 0.08 mm2 to 6 mm2. It comes in various mounting types, including NS 35/7.5 and NS 35/15, with a standard color of gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Fuse Type
G - 5 X 20
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
6.3 Amp
Sub Component
Fuse Terminal Block
Sub Component
Fuse Modular Terminal Block
Features
Comprehensive product range for cartridge fuse-links, automotive flange fuses, and thermal device circuit breaker plugs
Easy potential distribution thanks to continuous function shafts
Convenient testing of fuses with test points on both sides
Quick identification of faulty fuses and fuse holders regardless of the current direction thanks to an LED status indicator
Easily accessible fuse-links are easy to replace
Same shape as the feed-through, knife, and disconnect terminal blocks
