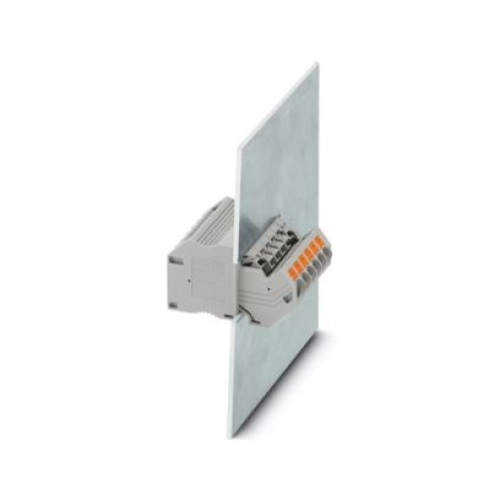

Phoenix Contact 3044918 Panel Feed-through Terminal Block
Phoenix 3044918 Feed-through terminal block Terminal Blocks
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day (MUST BUY IN PACKS OF 5)
Price: $61.96
Sale Price:
$37.40

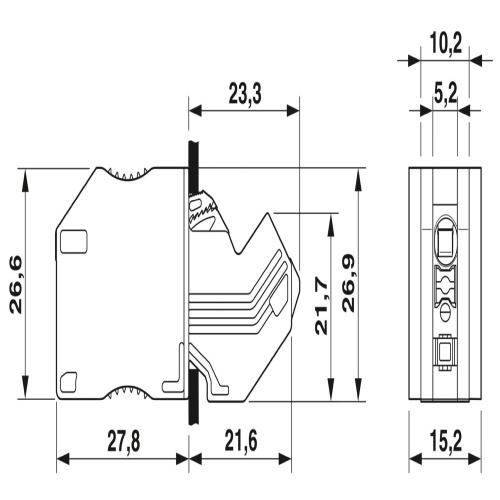

Panel feed-through terminal block, Minimum distance to other conductive surfaces: min 5 mm, nom. voltage: 500 V, nominal current: 24 A, connection method: Push-in connection, number of connections: 26, number of positions: 13, cross section: 0.14 mm² - 4 mm², AWG: 26 - 12, width: 72 mm, height: 26.6 mm, color: gray, mounting type: Wall mounting
| Specifications | |
| Terminal Block Indication | No Indicator |
| Terminal Block Fused | Not Fused |
| Terminal Block Grounded | Not Grounded |
| Jumper Pitch | 5.2 mm |
| Terminal Block Number of Connections | 26 |
| Jumper Number of Positions | 13 |
| Component | Terminal block |
| Manufacturer | Phoenix Contact |
| Sub Component | Feed-through terminal block |
| Sub Component | Panel Feed-through Terminal Block |
Customer Reviews
0.0
All Reviews
Phoenix 3044918 CAD data International.dxf
Phoenix 3044918 CAD data International.pdf
Phoenix 3044918 CAD data International.stp
Phoenix 3044918 Manufacturers declaration International.pdf
Phoenix 3044918 Manufacturers declaration International-2.pdf
Phoenix 3044918 Package Slip International.pdf
Phoenix 3044918 Safety note English.pdf
Phoenix 3044918 Tender Text English.zip
