Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

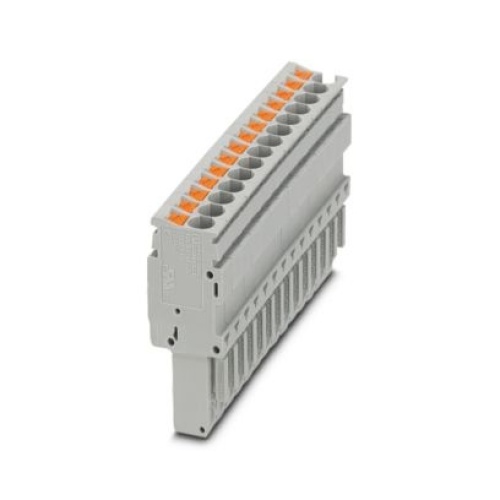

Phoenix Contact 3209992 Plug PP-H 2,5/14
Normally In Stock
Code: 64004
PP-H 2,5/14 Phoenix 3209992 Terminal Plug Push-in connection 500 V 24 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$16.85
Sale Price
$14.04
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3209992 The plug has a nominal voltage rating of 500 V and is designed to handle a maximum current of 24 A with 14 connection points; it uses push-in connections and can accommodate various cross-sectional areas between 0.14 mm² and 4 mm², rated for one level of use, distinguished by its gray color.
Specifications
Terminal Block Voltage Rating
500 Volt
Terminal Block Number of Levels
1
Terminal Block Component Color
Gray
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Jumper Pitch
5.2 mm
Terminal Block Number of Connections
14
Terminal Block Amperage
24 Amp
Terminal Block Width
72.8 mm
Jumper Number of Positions
14
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features
Large-surface labeling option
The Push-in technology COMBI plugs for self-assembly provide solutions that users can implement themselves
Tested for railway applications
Downloads
Phoenix 3209992 CAD data International.dxfPhoenix 3209992 CAD data International.pdfPhoenix 3209992 CAD data International.stpPhoenix 3209992 Manufacturers declaration International-2.pdfPhoenix 3209992 Manufacturers declaration International.pdfPhoenix 3209992 Safety note English.pdfPhoenix 3209992 Tender Text English.zip
