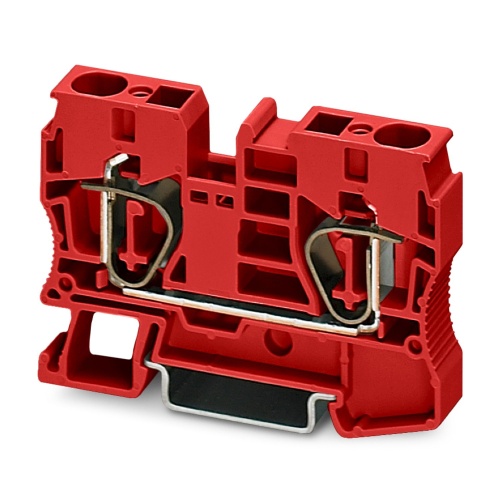

Phoenix Contact 3035662 Feed-through modular terminal block ST 10 RD
Normally In Stock
Code: 63101
ST 10 RD Phoenix 3035662 Feed-through terminal block Spring-cage connection 1000 V 57 Amp red Terminal Blocks
Condition: New
Usually Ships Same day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$5.81
Sale Price
$4.84
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3035662 The terminal block features a feed-through modular design with specifications including a nominal voltage of 1000 V and a maximum current capacity of 57 A, accommodating two connections via a spring-cage connection method. The rated cross sections range from 0.2 mm² to 16 mm² across one level of mounting, available in different configurations such as NS 35/7,5 and NS 35/15, and identified by their distinctive red color marking.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
10.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Grounded
Not Grounded
Terminal Block Amperage
57 Amp
Terminal Block Min Wire Size
24
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Component Color
Red
Terminal Block Max Wire Size
6
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Features
The flexible options for reducing bridging in the CLIPLINE complete system can be found in "Accessories for the CLIPLINE complete modular terminal block system"
The double bridge shaft not only enables individual chain bridging, but also reducing bridging to spring-cage terminal blocks with smaller cross sections
Downloads
Phoenix 3035662 CAD data International.dxfPhoenix 3035662 CAD data International.pdfPhoenix 3035662 CAD data International.stpPhoenix 3035662 Certification English-2.pdfPhoenix 3035662 Certification English.pdfPhoenix 3035662 Manufacturers declaration International-2.pdfPhoenix 3035662 Manufacturers declaration International-3.pdfPhoenix 3035662 Manufacturers declaration International.pdfPhoenix 3035662 Safety note English.pdfPhoenix 3035662 Tender Text English.zipPhoenix 3035662 User instructions for the Ex Area International.pdf
