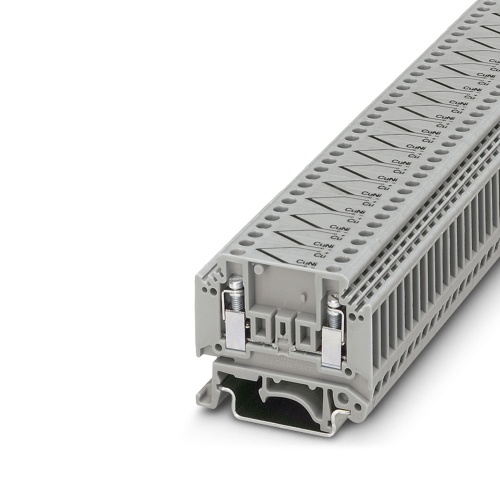

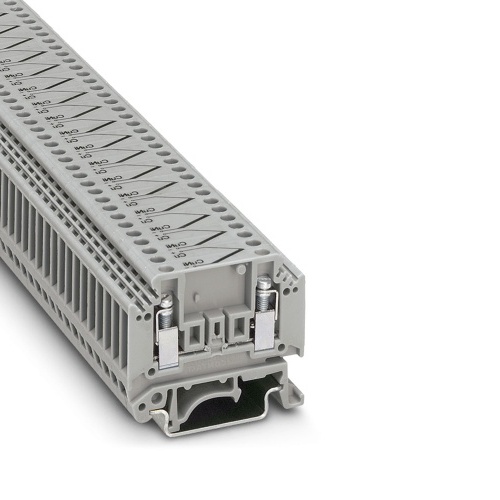

Phoenix Contact 3100103 Thermoelectric voltage terminal block pair MTKD-NICRSI/NISI EX
Normally In Stock
Code: 63099
MTKD-NICRSI/NISI EX Phoenix 3100103 Feed-through terminal block Screw connection 400 V 1 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$22.70
Sale Price
$18.92
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3100103 A thermoelectric voltage terminal block pair of the TC type N features a nominal voltage of 400 V and a maximum current of 1 A, with four connection points and two positions, utilizing a screw connection method at one level. The cross-sectional area ranges from 0.2 mm² to 4 mm² and comes in various mounting types (NS 35/7.5, NS 35/15, NS 32), while its color is gray, denoted by the 'NS' designation.
Specifications
Terminal Block Voltage Rating
400 Volt
Terminal Block Width
10.4 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Jumper Number of Positions
2
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
1 Amp
Sub Component
Feed-Through Terminal Block
Sub Component
Thermoelectric Voltage Terminal Block Pair
Features
These special terminal blocks are used to extend thermocouple equalizing conductors in corresponding measuring circuits
This ensures that no false thermoelectric voltages occur at the junctions of the thermocouple/terminal block/compensating line and that the basic values in accordance with EN 60584/DIN EN 60584 are observed
The equalizing conductors are made from materials which, up to temperatures of 200°C, have the same thermal characteristics as the corresponding thermocouples
