Phoenix Contact 3273090 Distribution block PTFIX 6/12X2,5-NS35 BU
Normally In Stock
Code: 63092
PTFIX 6/12X2,5-NS35 BU Phoenix 3273090 Distributor terminal block Push-in connection 690 V 24 Amp blue Terminal Blocks
Condition: New
Usually ships within 7-14 days. Call for ship time.$5.11
Sale Price
$4.26
MUST BUY IN PACKS OF 8
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

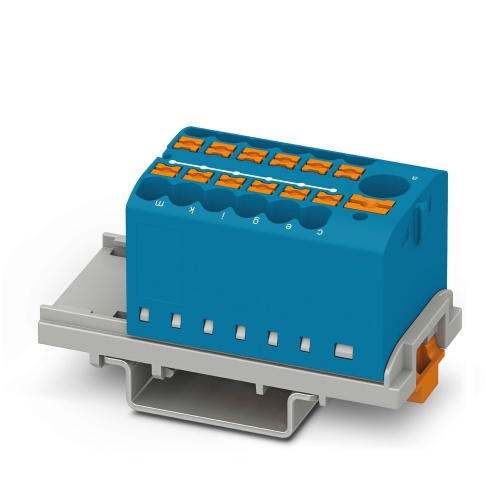

Phoenix Contact 3273090 The distribution block features a vertical alignment and integrated supply with a nominal voltage of 690V and a nominal current of 24A. It has 13 connections, utilizing push-in connections for load contacts and line contacts, with rated cross sections ranging from 0.14mm2 to 4mm2 for load contacts and 6mm2 to 10mm2 for line contacts. The mounting type is NS35/7,5 or NS35/15, and the color coding is blue.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Voltage Rating
690 Volt
Terminal Block Number of Levels
1
Terminal Block Number of Connections
13
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Width
28.6 mm
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features

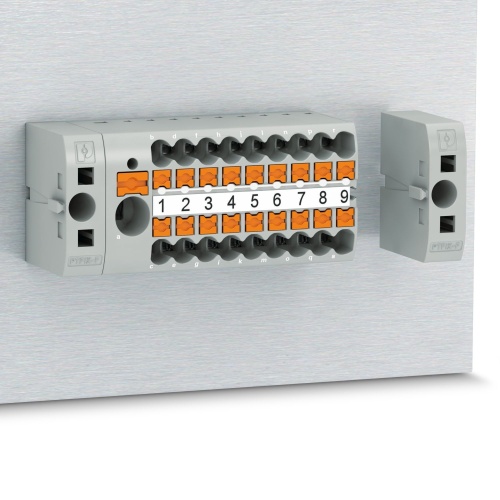

Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting
Clear wiring, thanks to eleven different color variants
Time-saving conductor connection, thanks to tool-free Push-in direct connection technology
Time savings of up to 80 %, thanks to ready-to-mount blocks without manual bridging

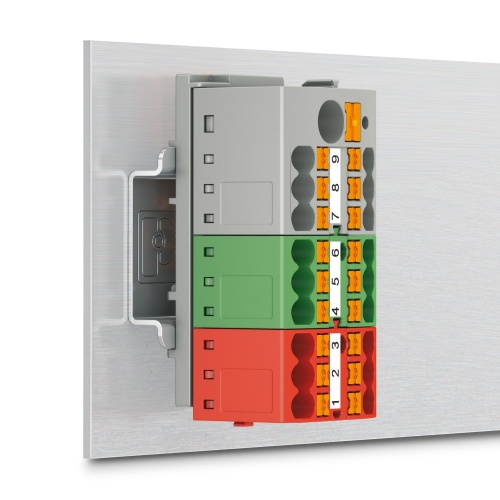

Space savings of up to 50 % on the DIN rail, thanks to transverse mounting
Downloads
Phoenix 3273090 CAD data International.dxfPhoenix 3273090 CAD data International.pdfPhoenix 3273090 CAD data International.stpPhoenix 3273090 Manufacturers declaration International-2.pdfPhoenix 3273090 Manufacturers declaration International.pdfPhoenix 3273090 Safety note English.pdfPhoenix 3273090 Tender Text English.zip
