Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

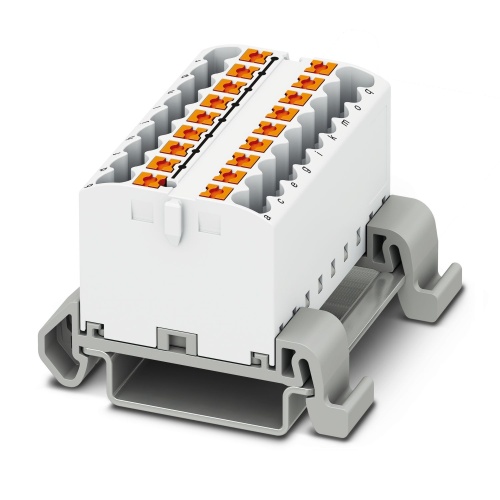

Phoenix Contact 3273188 Distribution block PTFIX 18X2,5-NS35A WH
Normally In Stock
Code: 63091
PTFIX 18X2,5-NS35A WH Phoenix 3273188 Distributor terminal block Push-in connection 690 V 24 Amp white Terminal Blocks
Condition: New
Usually ships within 7-14 days. Call for ship time.$6.74
Sale Price
$5.62
MUST BUY IN PACKS OF 8
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3273188 The distribution block features a horizontal alignment and has a nominal voltage of 690 V and a nominal current capacity of 24 A. It comes with 18 connections that utilize a push-in connection method, while its cross-sectional area ranges from 0.14 mm2 to 4 mm2. The mounting type is available in two configurations, NS 35/7,5 and NS 35/15, and it has a white color designation.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Voltage Rating
690 Volt
Terminal Block Number of Levels
1
Terminal Block Number of Connections
18
Terminal Block Width
46.9 mm
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
White
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features
Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting
Clear wiring, thanks to eleven different color variants
Time savings of up to 80 %, thanks to ready-to-mount blocks without manual bridging
Space savings of up to 50 % on the DIN rail, thanks to transverse mounting
Time-saving conductor connection, thanks to tool-free Push-in direct connection technology
Downloads
Phoenix 3273188 CAD data International.dxfPhoenix 3273188 CAD data International.pdfPhoenix 3273188 CAD data International.stpPhoenix 3273188 Manufacturers declaration International-2.pdfPhoenix 3273188 Manufacturers declaration International.pdfPhoenix 3273188 Safety note English.pdfPhoenix 3273188 Tender Text English.zip
