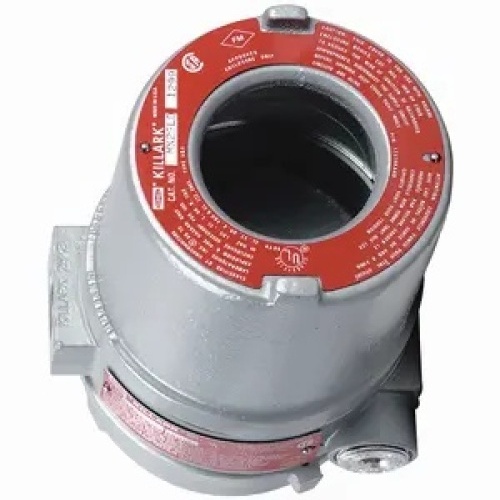

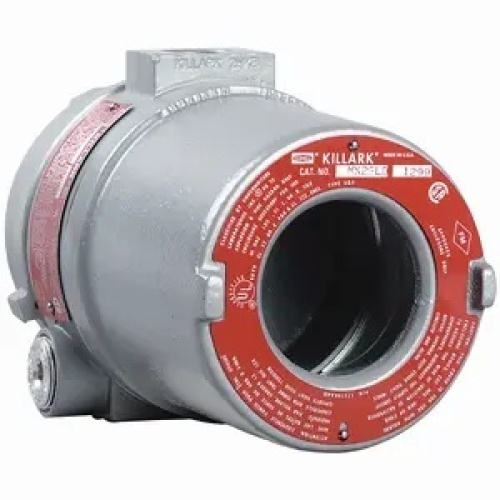

Killark 2HKB-B-B Enclosure & 2 Blank Covers
Normally In Stock
Code: 630743
Killark 2HKB-B-B - HK Instrument Enclosure, 3-1/2" Internal Diameter Round Body Double Port, 2 Flat Cover, Class I, II, III, BCDEFG, UL/CSA/FM, Cast Aluminum, NEMA 4
Condition: New
Usually Ships Same Day or Next Day$536.48
Sale Price
$447.07
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Killark 2HKB-B-B - Small compact, 3-1/2 Dia. round body enclosures, two single port depths to choose from. Also available in a double port style. Option of 4 threaded lens covers and 4 blank threaded cover in 4 depths. The HK series is for use in locations that are hazardous, corrosive, wet, hose down, dust, dirty, under both sever hot and cold ambient conditions. They are UL / CSA / FM certified for Class I Groups BCD, Class I Zone 1 & 2 IIB+H2, Class II Groups EFG, Class III, Type 4 & 4X. Also, ATEX, IEC Ex, Ex db IIC, Ex e IIC, Ex tb IIIC T4…T3 IP66 with suffix “C”. Supplied with ¾”NPT conduit openings, additional openings are available. HK series is made of cast copper-free aluminum (less than 4/10 of 1%), supplied standard with a Nitrile (BUNA-N) O-Ring, internal external ground (earth) screws, stainless steel tamper proof locking set screw and electrostatically applied grey powder paint. Internal “X” pad for mounting instruments or terminals.
Specifications
Component
Hazardous Location Enclosure
Manufacturer
Killark
Enclosure Composition
Copper Free Aluminum
Enclosure Cover Type
Threaded
Line
HK
Features
Compact round body instrument enclosure, double cover design.
The enclosure has two separate chambers for isolation between power and instrument, with threaded screw covers to provide easy access to interior.
High strength, lighter weight, corrosion resistant copper free cast aluminum construction.
Cover o-ring, Nitrile (BUNA-N) material, supplied standard for a Type 4X rating.
Cast mounting lugs are standard on all boxes.
Internal ground screw supplied on all boxes.
