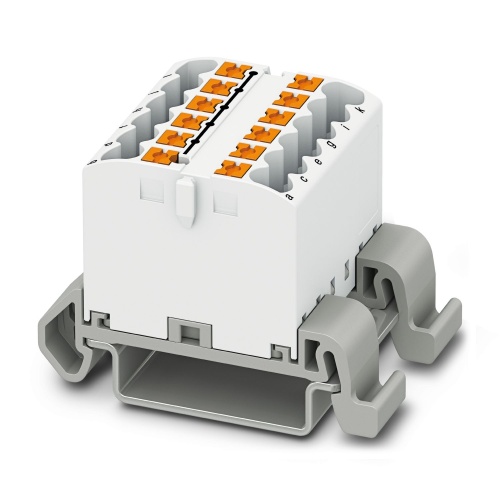

Phoenix Contact 3273166 Distribution block PTFIX 12X2,5-NS35A WH
Normally In Stock
Code: 63058
PTFIX 12X2,5-NS35A WH Phoenix 3273166 Distributor terminal block Push-in connection 690 V 24 Amp white Terminal Blocks
Condition: New
Usually ships within 7-14 days. Call for ship time.$4.49
Sale Price
$3.74
MUST BUY IN PACKS OF 8
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3273166 The distribution block has a nominal voltage of 690V and a nominal current of 24A, featuring push-in connections for easy installation with up to 12 connection points. The cross-sectional area ranges from 0.14mm² to 4mm², while the mounting type is NS35/7.5 or NS35/15 and it has a white color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Voltage Rating
690 Volt
Terminal Block Number of Levels
1
Terminal Block Number of Connections
12
Terminal Block Width
31.5 mm
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
White
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features

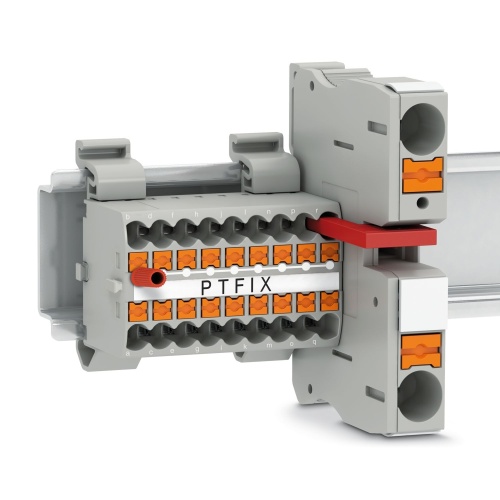

Space savings of up to 50 % on the DIN rail, thanks to transverse mounting
Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting
Time-saving conductor connection, thanks to tool-free Push-in direct connection technology
Time savings of up to 80 %, thanks to ready-to-mount blocks without manual bridging

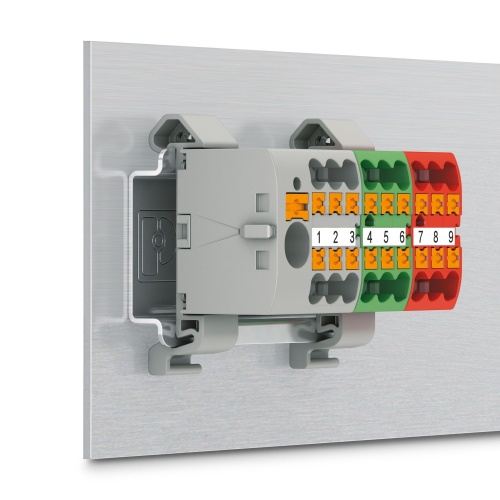

Clear wiring, thanks to eleven different color variants
Downloads
Phoenix 3273166 CAD data International.dxfPhoenix 3273166 CAD data International.pdfPhoenix 3273166 CAD data International.stpPhoenix 3273166 Manufacturers declaration International-2.pdfPhoenix 3273166 Manufacturers declaration International.pdfPhoenix 3273166 Safety note English.pdfPhoenix 3273166 Tender Text English.zip
