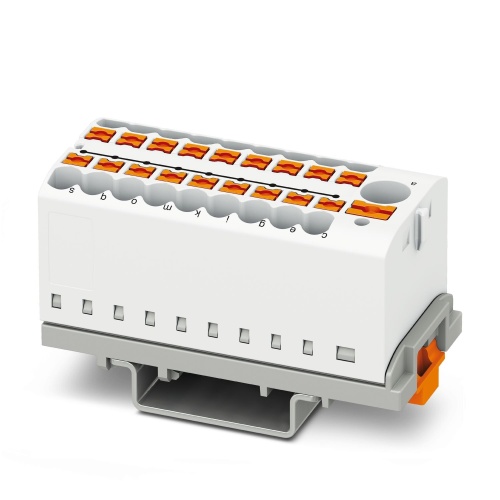

Phoenix Contact 3273122 Distribution block PTFIX 6/18X2,5-NS35 WH
Normally In Stock
Code: 63053
PTFIX 6/18X2,5-NS35 WH Phoenix 3273122 Distributor terminal block Push-in connection 690 V 24 Amp white Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$7.34
Sale Price
$6.12
MUST BUY IN PACKS OF 8
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

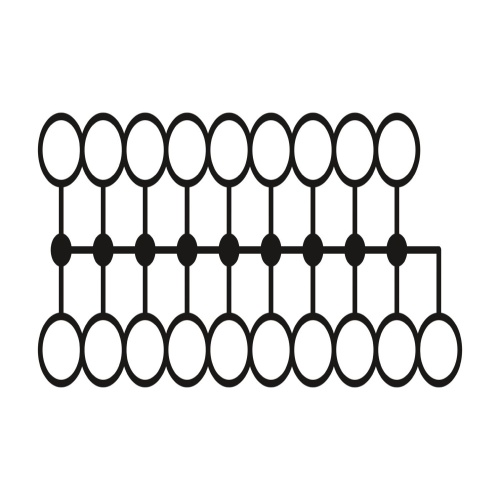

Phoenix Contact 3273122 The distribution block features a vertical alignment and is equipped with an integrated supply, boasting a nominal voltage of 690V and a nominal current capacity of 24A. It has 19 connections available for push-in and load contact setups, accommodating cross-sections ranging from 0.14mm² to 4mm², and is rated for line contacts with cross-sections between 6mm² and 10mm². The mounting type is NS35/7.5 or NS35/15 and the product comes in a white color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Voltage Rating
690 Volt
Terminal Block Number of Levels
1
Terminal Block Number of Connections
19
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Width
28.6 mm
Terminal Block Component Color
White
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features
Space savings of up to 50 % on the DIN rail, thanks to transverse mounting

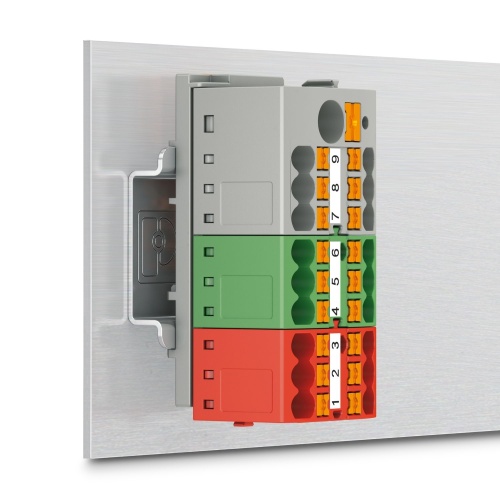

Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting
Time-saving conductor connection, thanks to tool-free Push-in direct connection technology
Time savings of up to 80 %, thanks to ready-to-mount blocks without manual bridging
Clear wiring, thanks to eleven different color variants
Downloads
Phoenix 3273122 CAD data International.dxfPhoenix 3273122 CAD data International.pdfPhoenix 3273122 CAD data International.stpPhoenix 3273122 Manufacturers declaration International-2.pdfPhoenix 3273122 Manufacturers declaration International.pdfPhoenix 3273122 Safety note English.pdfPhoenix 3273122 Tender Text English.zip
