Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

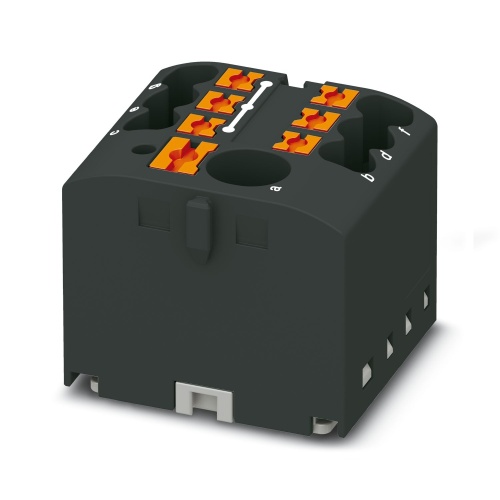

Phoenix Contact 3273474 Distribution block PTFIX 6/6X2,5-G BK
Normally In Stock
Code: 63042
PTFIX 6/6X2,5-G BK Phoenix 3273474 Distributor terminal block Push-in connection 450 V 24 Amp black Terminal Blocks
Condition: New
Usually Ships Same day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$3.97
Sale Price
$3.31
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3273474 The distribution block has a basic terminal configuration with supply and nominal voltage ratings of 450 V and current capacity of 24 A, featuring seven connection points that utilize push-in connections, while load contacts have cross-sectional areas ranging from 0.14 mm² to 4 mm² and line contacts range from 6 mm² to 10 mm², with a mounting type using adhesive and colorated in black.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
7
Terminal Block Width
25.6 mm
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Black
Terminal Block Amperage
24 Amp
Terminal Block Voltage Rating
450 Volt
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features
Space savings of up to 50 % on the DIN rail, thanks to transverse mounting
Clear wiring, thanks to eleven different color variants
Time savings of up to 80 %, thanks to ready-to-mount blocks without manual bridging
Time-saving conductor connection, thanks to tool-free Push-in direct connection technology
Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting
Downloads
Phoenix 3273474 CAD data International.dxfPhoenix 3273474 CAD data International.pdfPhoenix 3273474 CAD data International.stpPhoenix 3273474 Manufacturers declaration International-2.pdfPhoenix 3273474 Manufacturers declaration International.pdfPhoenix 3273474 Package Slip International.pdfPhoenix 3273474 Safety note English.pdfPhoenix 3273474 Tender Text English.zip
