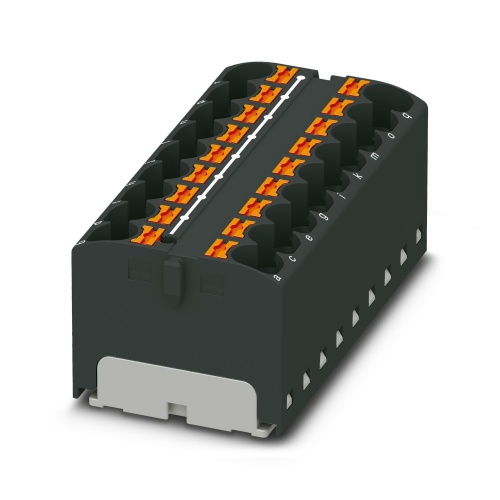

Phoenix Contact 3273980 Distribution block PTFIX 18X4-G BK
Normally In Stock
Code: 63012
PTFIX 18X4-G BK Phoenix 3273980 Distributor terminal block Push-in connection 450 V 32 Amp black Terminal Blocks
Condition: New
Usually Ships Same day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$10.79
Sale Price
$8.99
MUST BUY IN PACKS OF 8
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

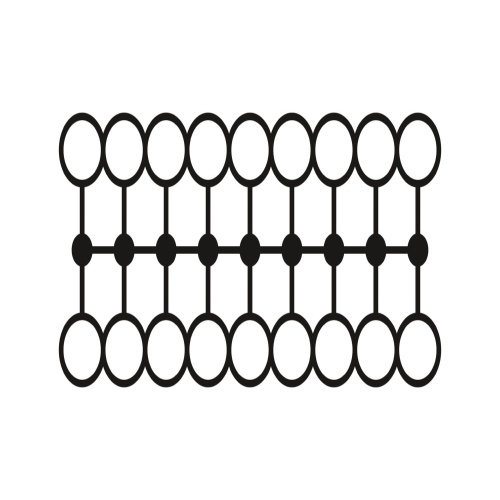

Phoenix Contact 3273980 A distribution block with an internal bridging system is available with a nominal voltage of 450 V and a nominal current capacity of 32 A. The block features 18 push-in connections across various cross-sectional areas ranging from 0.2 mm² to 6 mm², allowing for flexible installation options. Adhesive mounting is also supported, with the component coming in black color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
18
Terminal Block Width
55.4 mm
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Black
Terminal Block Amperage
32 Amp
Terminal Block Voltage Rating
450 Volt
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features
Clear arrangement thanks to marking of all terminal points
Convenient test options, thanks to test openings at every terminal point
Flexible use, thanks to DIN rail and direct mounting
Space-saving, thanks to the compact design
Space-saving potential distribution, thanks to compact micro potential distributors
Downloads
Phoenix 3273980 CAD data International.dxfPhoenix 3273980 CAD data International.pdfPhoenix 3273980 CAD data International.stpPhoenix 3273980 Manufacturers declaration International-2.pdfPhoenix 3273980 Manufacturers declaration International.pdfPhoenix 3273980 Package Slip International.pdfPhoenix 3273980 Safety note English.pdfPhoenix 3273980 Tender Text English.zip
