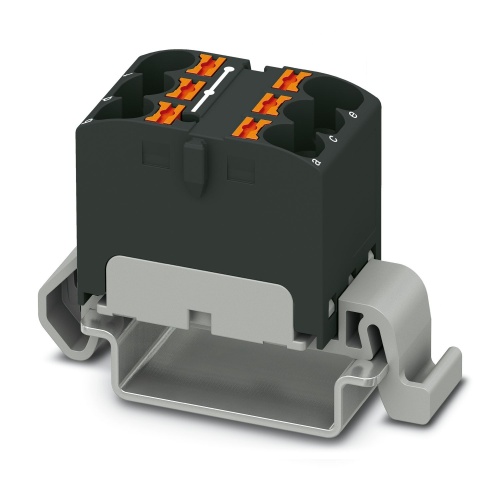

Phoenix Contact 3273672 Distribution block PTFIX 6X4-NS35A BK
Normally In Stock
Code: 62983
PTFIX 6X4-NS35A BK Phoenix 3273672 Distributor terminal block Push-in connection 800 V 32 Amp black Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$3.58
Sale Price
$2.98
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3273672 The distribution block features a horizontal alignment and is rated for a nominal voltage of 800 V with a corresponding nominal current capacity of 32 A. It has six connections that utilize push-in connections, allowing for varying cross-sectional areas between 0.2 mm² and 6 mm². The mounting type is NS 35/7.5 or NS 35/15, while the color is black.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
6
Terminal Block Width
18.5 mm
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Black
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features
Space savings of up to 50 % on the DIN rail, thanks to transverse mounting
Time savings of up to 80 %, thanks to ready-to-mount blocks without manual bridging
Time-saving conductor connection, thanks to tool-free Push-in direct connection technology
Clear wiring, thanks to eleven different color variants
Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting
Downloads
Phoenix 3273672 CAD data International.dxfPhoenix 3273672 CAD data International.pdfPhoenix 3273672 CAD data International.stpPhoenix 3273672 Manufacturers declaration International-2.pdfPhoenix 3273672 Manufacturers declaration International.pdfPhoenix 3273672 Safety note English.pdfPhoenix 3273672 Tender Text English.zip
