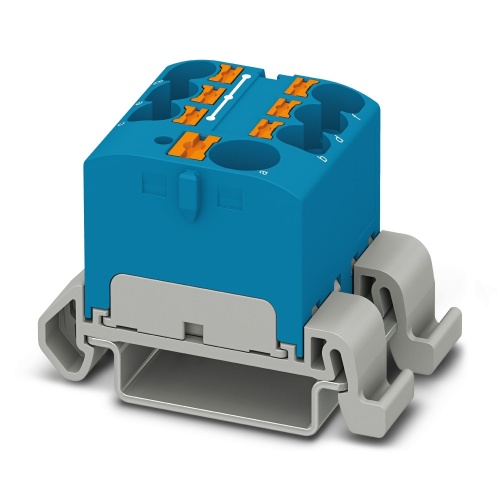

Phoenix Contact 3273726 Distribution block PTFIX 10/6X4-NS35A BU
Normally In Stock
Code: 62952
PTFIX 10/6X4-NS35A BU Phoenix 3273726 Distributor terminal block Push-in connection 450 V 32 Amp blue Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$4.50
Sale Price
$3.75
MUST BUY IN PACKS OF 8
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

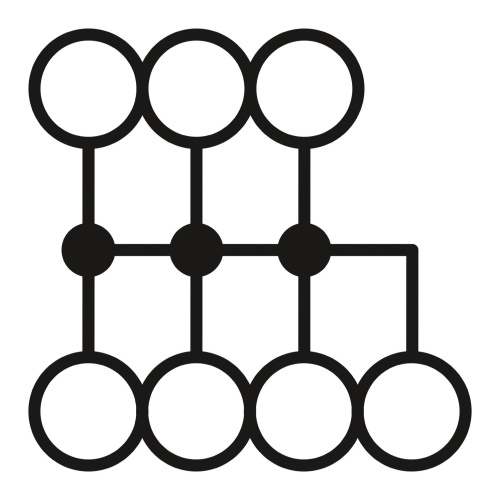

Phoenix Contact 3273726 The distribution block features a nominal voltage of 800 V and a nominal current of 41 A, allowing for seven connections. The connection method is push-in, with rated cross sections ranging from 0.2 mm2 to 6 mm2 for load contacts and from 0.5 mm2 to 10 mm2 for line contacts. Various mounting types are available, including NS 35/7.5 and NS 35/15, and the color of the distribution block is blue.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
7
Terminal Block Width
27.9 mm
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Amperage
32 Amp
Terminal Block Voltage Rating
450 Volt
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features
Time savings of up to 80 %, thanks to ready-to-mount blocks without manual bridging
Space savings of up to 50 % on the DIN rail, thanks to transverse mounting
Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting
Time-saving conductor connection, thanks to tool-free Push-in direct connection technology
Clear wiring, thanks to eleven different color variants
Downloads
Phoenix 3273726 CAD data International.dxfPhoenix 3273726 CAD data International.pdfPhoenix 3273726 CAD data International.stpPhoenix 3273726 Manufacturers declaration International-2.pdfPhoenix 3273726 Manufacturers declaration International.pdfPhoenix 3273726 Safety note English.pdfPhoenix 3273726 Tender Text English.zip
