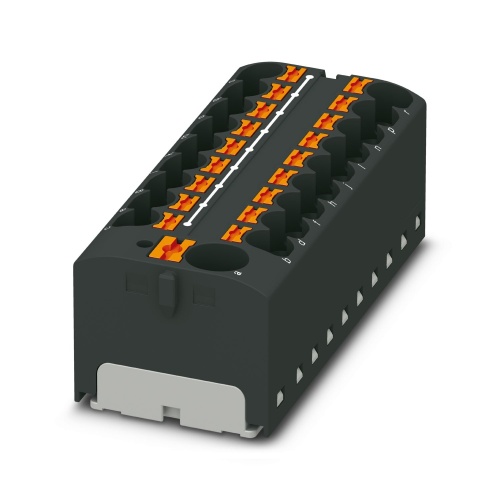

Phoenix Contact 3274046 Distribution block PTFIX 10/18X4-G BK
Normally In Stock
Code: 62950
PTFIX 10/18X4-G BK Phoenix 3274046 Distributor terminal block Push-in connection 450 V 32 Amp black Terminal Blocks
Condition: New
Usually Ships Same day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$14.32
Sale Price
$11.93
MUST BUY IN PACKS OF 8
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3274046 The distribution block has a nominal voltage of 450V and a nominal current capacity of 32A, with 19 connections available. The connection method used is push-in for load contacts and line contacts, with rated cross-sections ranging from 0.2mm² to 10mm². The mounting type is adhesive, and the block has a black color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
19
Terminal Block Width
64.8 mm
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Black
Terminal Block Amperage
32 Amp
Terminal Block Voltage Rating
450 Volt
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features
Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting
Clear wiring, thanks to eleven different color variants
Time-saving conductor connection, thanks to tool-free Push-in direct connection technology
Time savings of up to 80 %, thanks to ready-to-mount blocks without manual bridging
Space savings of up to 50 % on the DIN rail, thanks to transverse mounting
Downloads
Phoenix 3274046 CAD data International.dxfPhoenix 3274046 CAD data International.pdfPhoenix 3274046 CAD data International.stpPhoenix 3274046 Manufacturers declaration International-2.pdfPhoenix 3274046 Manufacturers declaration International.pdfPhoenix 3274046 Package Slip International.pdfPhoenix 3274046 Safety note English.pdfPhoenix 3274046 Tender Text English.zip
