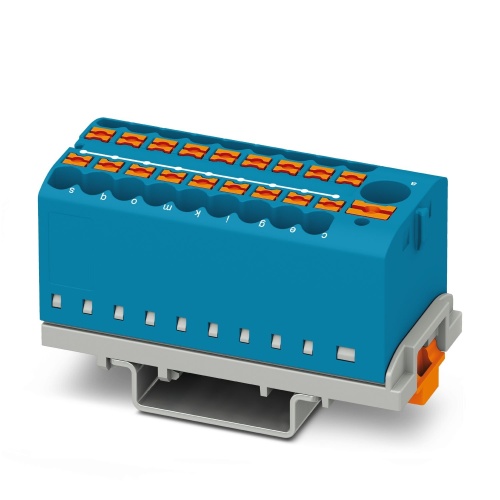

Phoenix Contact 3273112 Distribution block PTFIX 6/18X2,5-NS35 BU
Normally In Stock
Code: 62888
PTFIX 6/18X2,5-NS35 BU Phoenix 3273112 Distributor terminal block Push-in connection 690 V 24 Amp blue Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$7.34
Sale Price
$6.12
MUST BUY IN PACKS OF 8
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

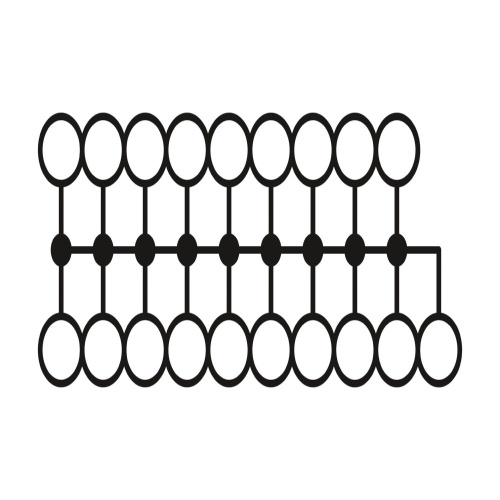

Phoenix Contact 3273112 The distribution block features a vertical alignment and integrated supply, with a nominal voltage of 690V and a nominal current of 24A, accommodating up to 19 connections using a push-in connection method. The available cross-sectional areas range from 0.14mm2 to 4mm2 for load contacts, and from 6mm2 to 10mm2 for line contacts. Mounting options include NS35/7.5 and NS35/15, with the block color being blue.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Voltage Rating
690 Volt
Terminal Block Number of Levels
1
Terminal Block Number of Connections
19
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Width
28.6 mm
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features

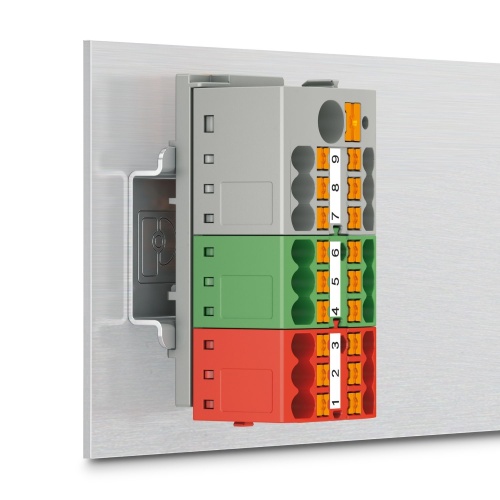

Space savings of up to 50 % on the DIN rail, thanks to transverse mounting
Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting
Time-saving conductor connection, thanks to tool-free Push-in direct connection technology
Time savings of up to 80 %, thanks to ready-to-mount blocks without manual bridging
Clear wiring, thanks to eleven different color variants
Downloads
Phoenix 3273112 CAD data International.dxfPhoenix 3273112 CAD data International.pdfPhoenix 3273112 CAD data International.stpPhoenix 3273112 Manufacturers declaration International-2.pdfPhoenix 3273112 Manufacturers declaration International.pdfPhoenix 3273112 Safety note English.pdfPhoenix 3273112 Tender Text English.zip
