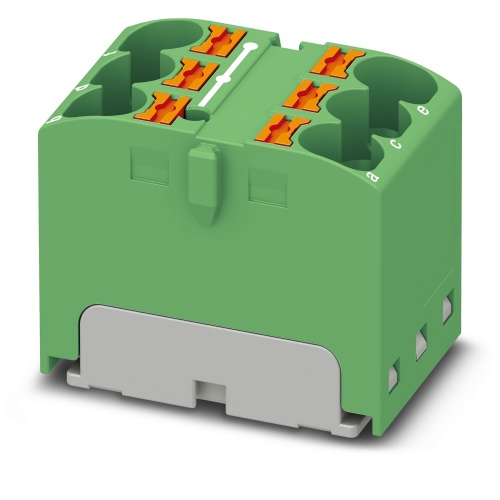

Phoenix Contact 3273930 Distribution block PTFIX 6X4-G GN
Normally In Stock
Code: 62810
PTFIX 6X4-G GN Phoenix 3273930 Distributor terminal block Push-in connection 450 V 32 Amp green Terminal Blocks
Condition: New
Usually Ships Same day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$4.81
Sale Price
$4.01
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

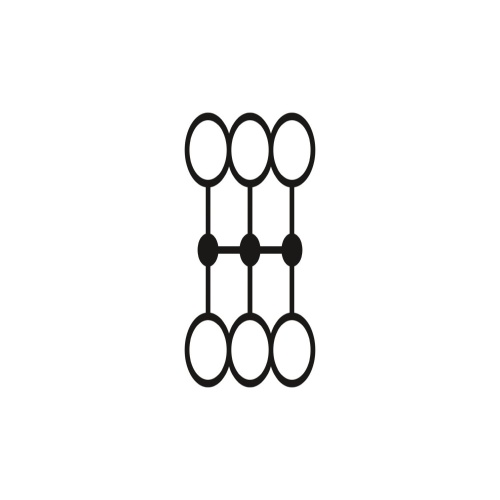

Phoenix Contact 3273930 The distribution block features a bridged internal design with a nominal voltage of 450V and a maximum current capacity of 32A, accommodating six connections via push-in terminals, spanning a range from 0.2mm² to 6mm² in cross-sectional area, secured via adhesive mounting with a green color scheme.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
6
Terminal Block Width
18.5 mm
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Green
Terminal Block Amperage
32 Amp
Terminal Block Voltage Rating
450 Volt
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features
Time-saving conductor connection, thanks to tool-free Push-in direct connection technology
Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting
Clear wiring, thanks to eleven different color variants
Time savings of up to 80 %, thanks to ready-to-mount blocks without manual bridging
Space savings of up to 50 % on the DIN rail, thanks to transverse mounting
Downloads
Phoenix 3273930 CAD data International.dxfPhoenix 3273930 CAD data International.pdfPhoenix 3273930 CAD data International.stpPhoenix 3273930 Manufacturers declaration International-2.pdfPhoenix 3273930 Manufacturers declaration International.pdfPhoenix 3273930 Package Slip International.pdfPhoenix 3273930 Safety note English.pdfPhoenix 3273930 Tender Text English.zip
