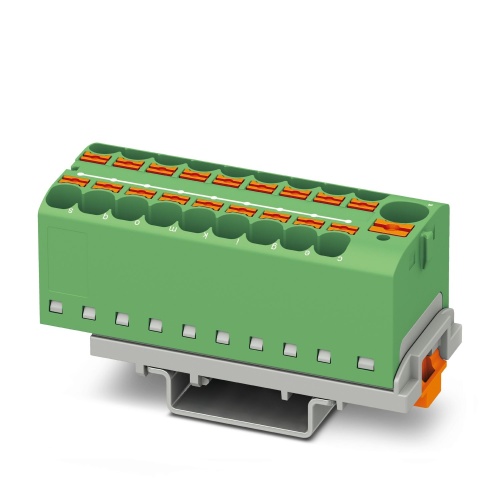

Phoenix Contact 3273644 Distribution block PTFIX 10/18X4-NS35 GN
Normally In Stock
Code: 62781
PTFIX 10/18X4-NS35 GN Phoenix 3273644 Distributor terminal block Push-in connection 800 V 32 Amp green Terminal Blocks
Condition: New
Usually ships within 7-14 days. Call for ship time.$10.02
Sale Price
$8.35
MUST BUY IN PACKS OF 8
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

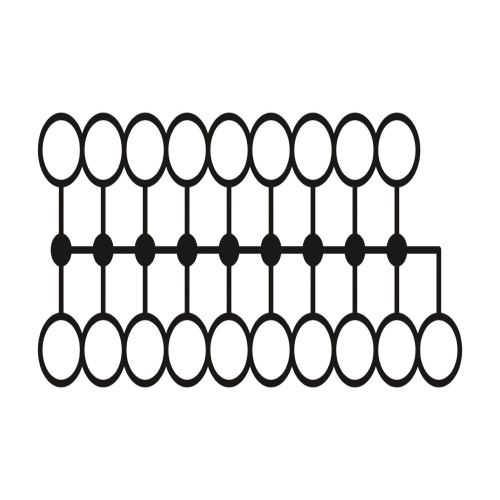

Phoenix Contact 3273644 The distribution block features a nominal voltage of 800 V and a nominal current capacity of 32 A, with 19 connections available for use. The connections are made using a push-in method, while the load contacts have a cross-sectional area ranging from 0.2 mm² to 6 mm². The line contacts, on the other hand, have a rated cross-sectional area of 10 mm² and can accommodate smaller cross-sections from 0.5 mm² to 10 mm². This block is mounted using the NS 35/7,5 and NS 35/15 types, and is colored green.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
19
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Width
28.6 mm
Terminal Block Component Color
Green
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features
Space savings of up to 50 % on the DIN rail, thanks to transverse mounting
Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting
Time-saving conductor connection, thanks to tool-free Push-in direct connection technology
Time savings of up to 80 %, thanks to ready-to-mount blocks without manual bridging
Clear wiring, thanks to eleven different color variants
Downloads
Phoenix 3273644 CAD data International.dxfPhoenix 3273644 CAD data International.pdfPhoenix 3273644 CAD data International.stpPhoenix 3273644 Manufacturers declaration International-2.pdfPhoenix 3273644 Manufacturers declaration International.pdfPhoenix 3273644 Safety note English.pdfPhoenix 3273644 Tender Text English.zip
