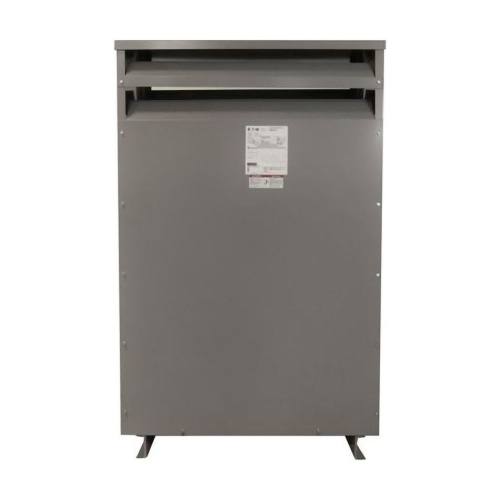

Eaton H48M28F2216QCU Ventilated Transformer - 225 Kva, 480V In, 208Y/120V Out
Normally In Stock
Code: 627557
Eaton H48M28F2216QCU Ventilated Transformer - 225 Kva, 480V In, 208Y/120V Out - NEMA 3R - DOE2016 Efficient - 51.5" x 40.5" x 26.5" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$78590.92
Sale Price
$65492.43
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton H48M28F2216QCU - 225 kVA K-4 DOE 2016 Efficient General Purpose Ventd Transformer 480V Delta, 208Y/120,115C rise, Cu Shielded Q
Specifications
Transformer VoltAmp
225 Kva
Manufacturer
Eaton
Component
Ventilated Transformer
Enclosure
NEMA 3R
Mounting
Floor
Transformer Primary Voltage In
480V
Transformer Secondary Voltage Out
208Y/120V
Frequency Rating
60 Hz
Coil Material
Copper
Frame
GPD
Tap Size
+2 At 2.5% FCAN
Tap Size
-4 At 2.5% FCBN
Features
Includes transformers with DOE 2016 and NEMA TP-1 efficiency requirements, and transformers with other efficiency requirements
Ventilated dry-type distribution transformers provide options in aluminum or copper windings
Available in 150 °C, 115 °C, and 80 °C temperature rise
Optional low-sound 3 dB and 5 dB below NEMA ST-20 standard
Available in 60 and 50 Hz
NEMA 2 standard enclosures, NEMA 3R with field-installed weathershields
Transformers include a versatile bonding/grounding bar affixed to the bottom panel as standard, to provide compliance with NEC 450.10(A)
