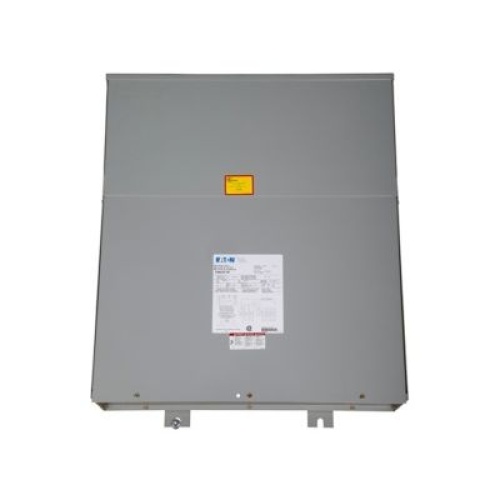

Eaton P48G28T15HCUB Mini Power Center - 15 Kva, 480V In, 208Y/120V Out, Single Phase
Normally In Stock
Code: 627545
Eaton P48G28T15HCUB Mini Power Center - 15 Kva, 480V In, 208Y/120V Out, Single Phase - NEMA 3R - NAFTA - 36.12" x 28.75" x 9.38" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$66971.02
Sale Price
$55809.18
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton P48G28T15HCUB - 15 kVA Mini Power Center 3PH 480-208Y/120, 115C Rise, Copper Windings, Copper bolt-on interior, NEMA 3R, HFD Primary Main breaker
Specifications
Transformer Voltage Phases
Single Phase
Transformer VoltAmp
15 Kva
Manufacturer
Eaton
Component
Mini Power Center
Enclosure
NEMA 3R
Mounting
Wall
Transformer Primary Voltage In
480V
Transformer Secondary Voltage Out
208Y/120V
Frequency Rating
60 Hz
Coil Material
Copper
Tap Size
2 At -5% FCBN
Frame
289A
Features
Padlockable hinged cover prevents removal of feeder breakers
All interconnecting wiring is performed at the factory, saving on installation costs
NEMA 3R enclosure for indoor or outdoor applications, optional NEMA 4X Stainless Steel enclosure for use in harsh applications
Ground bar is supplied to permit grounding of individual secondary circuits
Wiring compartment includes ample space for conduit entry
180°C insulation class. 115°C rise standard
optional 80°C rise
Cores are grounded with a copper lead
