Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

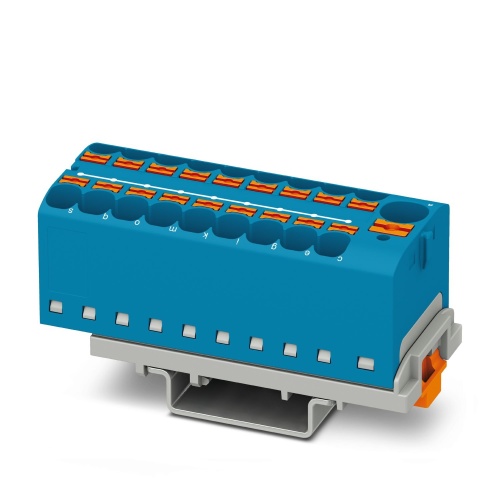

Phoenix Contact 3273638 Distribution block PTFIX 10/18X4-NS35 BU
Normally In Stock
Code: 62625
PTFIX 10/18X4-NS35 BU Phoenix 3273638 Distributor terminal block Push-in connection 800 V 32 Amp blue Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$10.02
Sale Price
$8.35
MUST BUY IN PACKS OF 8
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

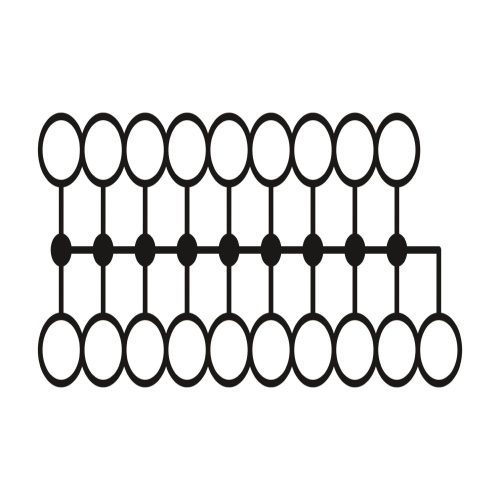

Phoenix Contact 3273638 The distribution block has a nominal voltage of 800V and a nominal current capacity of 32A, with 19 connections available, utilizing push-in connection and load contact configurations. The cross-sectional area for the line contact is rated at 10mm², while that for the push-in connection ranges from 0.2-6mm², depending on the specific type of mounting used which can be either NS35/7.5 or NS35/15, with a color designation of blue.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
19
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Width
28.6 mm
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features
Space savings of up to 50 % on the DIN rail, thanks to transverse mounting
Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting
Time-saving conductor connection, thanks to tool-free Push-in direct connection technology
Time savings of up to 80 %, thanks to ready-to-mount blocks without manual bridging
Clear wiring, thanks to eleven different color variants
Downloads
Phoenix 3273638 CAD data International.dxfPhoenix 3273638 CAD data International.pdfPhoenix 3273638 CAD data International.stpPhoenix 3273638 Manufacturers declaration International-2.pdfPhoenix 3273638 Manufacturers declaration International.pdfPhoenix 3273638 Safety note English.pdfPhoenix 3273638 Tender Text English.zip
