Eaton C361SF1264 Rotary Disconnect Switch - 200 Amp, NEMA 1/12, 600 VAC, 250 VDC
Normally In Stock
Code: 626237
Eaton C361SF1264 Rotary Disconnect Switch - 200 Amp, NEMA 1/12, 600 VAC, 250 VDC
Condition: New
Usually ships Same Day or Next Day$2625.24
Sale Price
$2187.70
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

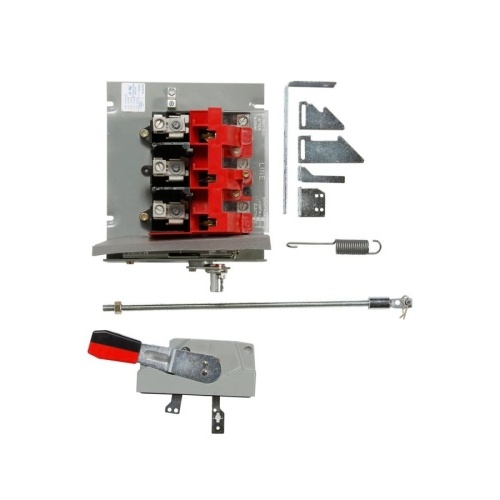

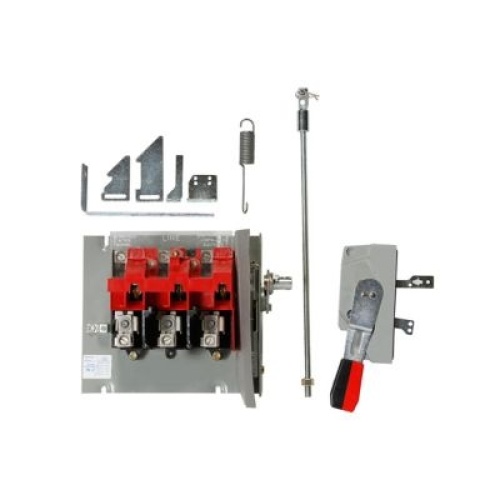

Eaton C361SF1264 - Type C361 Flange Mounted DS, Switch and operating mechanism with handle, 4 in handle, #250-6 AWG Cu/Al, NEMA 1 or 12 enclosure, Right-hand MTG, 40 hp at 208 Vac, 60 hp at 240 Vac, 125 hp at 480 Vac, 150 hp at 600 Vac, 40 hp at 250 Vdc - Maximum horsepower ratings refer to switch only. Fuse clips are non-interchangeable type for Class H, J, K, or R type fuses only. Components individually boxed and shipped in overpack carton.
Specifications
Enclosure NEMA Rating
NEMA 1
Enclosure NEMA Rating
NEMA 12
Disconnect Enclosure Width
24 In
Disconnect Enclosure Height
10 In
Manufacturer
Eaton
Enclosure Disconnect Type
Rotary Disconnect Switch
Disconnect Enclosure Depth
19.5 In
Features
Full range of UL508 and UL98 products, 600VAC max
Provide load break switching and isolation for machine and control circuits - R5 Series (UL508), 16A – 100A
Available in fusible and non-fusible styles providing quick-make, quick-break functionality for safety isolation of any low voltage circuit - R9 Series (UL98), 30A - 1200A
Broad offering of handles, shafts and accessories to accommodate a variety of applications
Horsepower rated
Available designs for manual transfer applications (16A – 1200A)
