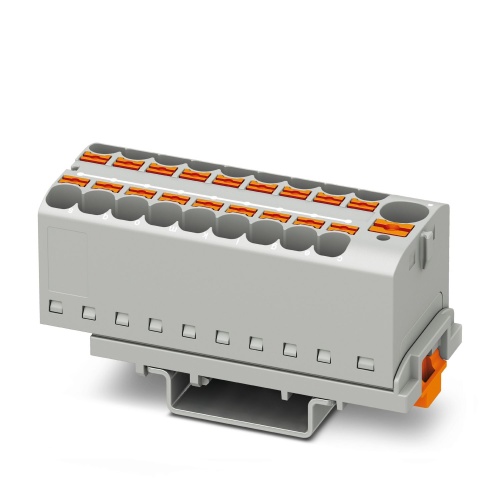

Phoenix Contact 3273636 Distribution block PTFIX 10/18X4-NS35 GY
Normally In Stock
Code: 62612
PTFIX 10/18X4-NS35 GY Phoenix 3273636 Distributor terminal block Push-in connection 800 V 32 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$10.02
Sale Price
$8.35
MUST BUY IN PACKS OF 8
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

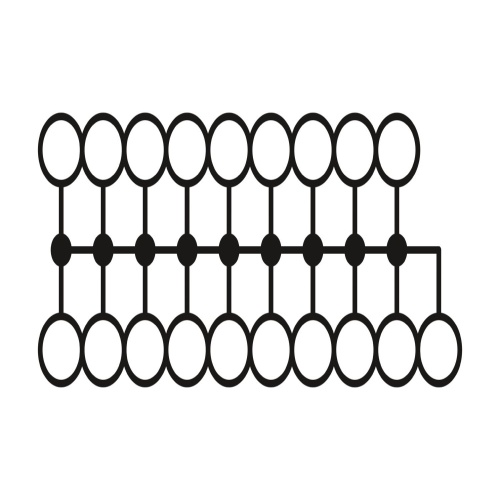

Phoenix Contact 3273636 The distribution block features a vertical alignment with an integrated supply and has specific specifications: it operates at 800 V nominal voltage and 32 A nominal current, accommodating 19 connections via push-in connections, including load contacts and line contacts. The cross-sectional areas range from 0.2 mm² to 6 mm² for the smaller lines and up to 10 mm² for the larger lines, while the mounting type is specified as NS 35/7,5 or NS 35/15, with a color grading of gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
19
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Width
28.6 mm
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features
Space savings of up to 50 % on the DIN rail, thanks to transverse mounting
Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting
Time-saving conductor connection, thanks to tool-free Push-in direct connection technology
Time savings of up to 80 %, thanks to ready-to-mount blocks without manual bridging
Clear wiring, thanks to eleven different color variants
Downloads
Phoenix 3273636 CAD data International.dxfPhoenix 3273636 CAD data International.pdfPhoenix 3273636 CAD data International.stpPhoenix 3273636 Manufacturers declaration International-2.pdfPhoenix 3273636 Manufacturers declaration International.pdfPhoenix 3273636 Safety note English.pdfPhoenix 3273636 Tender Text English.zip
