Code: 625998

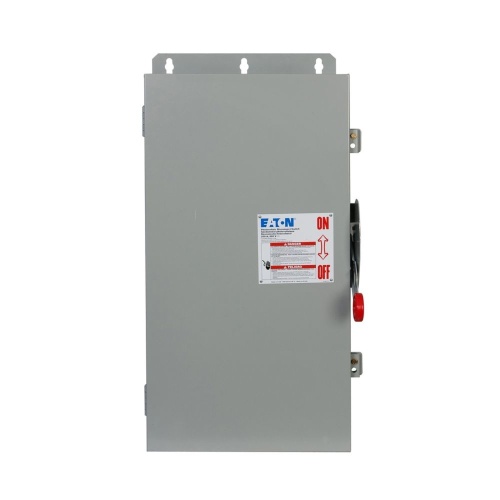

Eaton DCU2064FRM Heavy Duty DC Disconnect - 200 Amp, NEMA 3R, Painted Galvanized Steel, 600 VDC
Normally In Stock
Eaton DCU2064FRM Heavy Duty DC Disconnect - 200 Amp, NEMA 3R, Painted Galvanized Steel, 600 VDC
Condition: New
Usually ships Same Day or Next Day$11479.43
Sale Price
$9566.19
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton DCU2064FRM - heavy duty DC disconnect,DC disconnect/ungrounded system,200A,NEMA 3R,Painted galvanized steel,Fusible,Ungrounded,LC: In 300 MCM-#6 out 300 MCM-#6. SR: in 300 MCM-#6 out 300 MCM-#6. EG: in #4-#14 AWG out 1/0-#14,600 Vdc,2
Specifications
Enclosure NEMA Rating
NEMA 3R
Component
Fusible Disconnect Switch
Manufacturer
Eaton
Disconnect Enclosure Height
11.5 In
Disconnect Enclosure Depth
37.5 In
Disconnect Enclosure Width
18 In
Enclosure Composition
Painted Galvanized Steel
Enclosure Disconnect Type
Heavy Duty DC Disconnect
Features
UL Listed for reverse power flow
Many designs available with both EUSERC-compliant enhanced visible blade and viewing window for redundant ON/OFF indication
Loadbreak rated, includes full line shield and can be padlocked in the OFF position
Fusible and non-fusible
