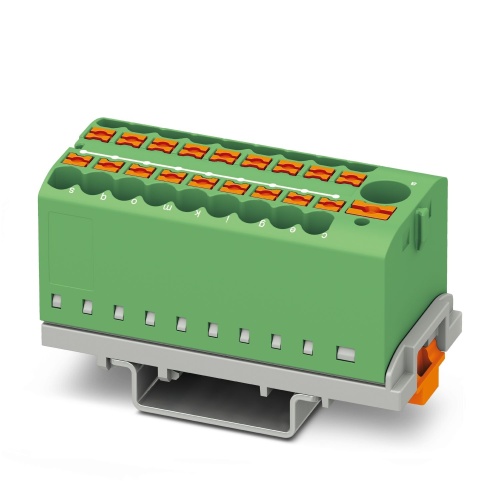

Phoenix Contact 3273118 Distribution block PTFIX 6/18X2,5-NS35 GN
Normally In Stock
Code: 62591
PTFIX 6/18X2,5-NS35 GN Phoenix 3273118 Distributor terminal block Push-in connection 690 V 24 Amp green Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$7.34
Sale Price
$6.12
MUST BUY IN PACKS OF 8
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

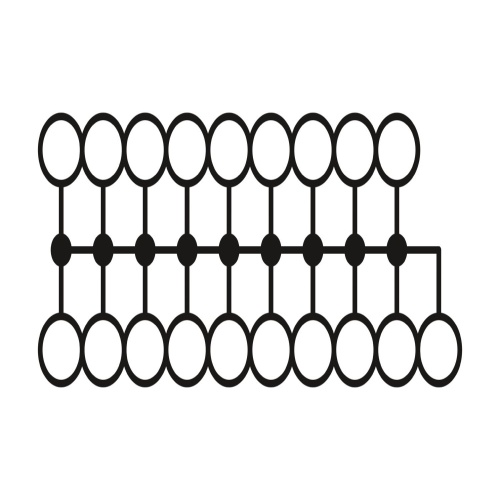

Phoenix Contact 3273118 A distribution block featuring a vertical alignment with integrated supply, comes with a nominal voltage of 690 V and a nominal current of 24 A, accommodating 19 connections, which can be made via push-in connections or line contacts. The connection sizes range from 0.14 mm2 to 4 mm2, while the rated cross sections are 6 mm2 for load contacts and 0.5 mm2 to 10 mm2 for line contacts, and it is mounted using type NS 35/7.5 or NS 35/15, with a green color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Voltage Rating
690 Volt
Terminal Block Number of Levels
1
Terminal Block Number of Connections
19
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Width
28.6 mm
Terminal Block Component Color
Green
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features
Time savings of up to 80 %, thanks to ready-to-mount blocks without manual bridging
Time-saving conductor connection, thanks to tool-free Push-in direct connection technology

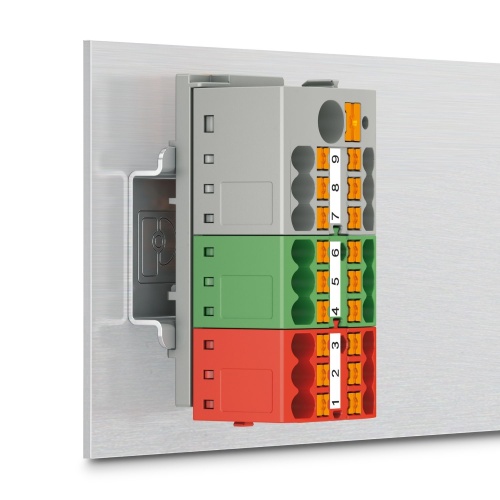

Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting
Clear wiring, thanks to eleven different color variants
Space savings of up to 50 % on the DIN rail, thanks to transverse mounting
