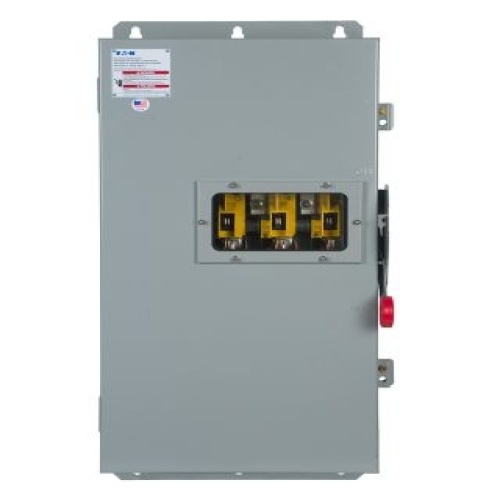

Eaton DH384UDKW-00NH Heavy Duty Safety Switch - 200 Amp, NEMA 12/3R, Three Pole, 800 VAC
Normally In Stock
Code: 625907
Eaton DH384UDKW-00NH Heavy Duty Safety Switch - 200 Amp, NEMA 12/3R, Three Pole, 800 VAC
Condition: New
Usually ships Same Day or Next Day$6031.96
Sale Price
$5026.63
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton DH384UDKW-00NH - heavy duty single-throw non-fused safety switch, 800VAC 200A/3P NF N12/3R Switch w/window
Specifications
Enclosure NEMA Rating
NEMA 3R
Enclosure NEMA Rating
NEMA 12
Component
Non-Fusible Disconnect Switch
Manufacturer
Eaton
Disconnect Enclosure Height
34.38 In
Disconnect Enclosure Depth
11.5 In
Enclosure Disconnect Type
Heavy Duty Safety Switch
Disconnect Enclosure Width
7.2 In
Features
Fusible and non-fusible switches are 100% load break and 100% load make rated
Suitable for service entrance applications unless otherwise noted
Mechanically interlocked cover to prevent easy access when the switch is in the ON position
Visible ON/OFF indication
Available in 30 A–1200 A ratings
NEMA 1, 3R, 12, 4 and 4X enclosures for robust environmental protection
Standard NEC 230.62 (C) and UL 98 compliant line side barrier
Features optional viewing window that incorporates visible blade components
