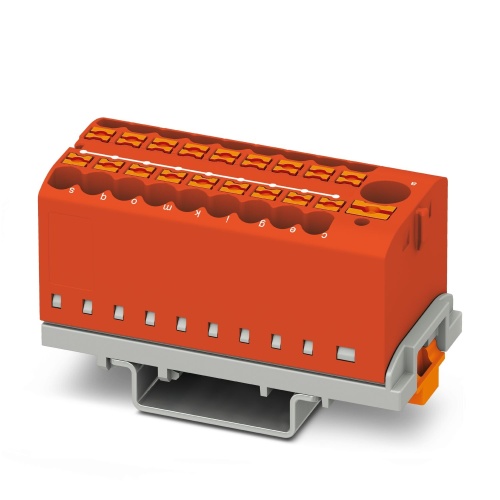

Phoenix Contact 3273114 Distribution block PTFIX 6/18X2,5-NS35 RD
Normally In Stock
Code: 62575
PTFIX 6/18X2,5-NS35 RD Phoenix 3273114 Distributor terminal block Push-in connection 690 V 24 Amp red Terminal Blocks
Condition: New
Usually ships within 7-14 days. Call for ship time.$7.34
Sale Price
$6.12
MUST BUY IN PACKS OF 8
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

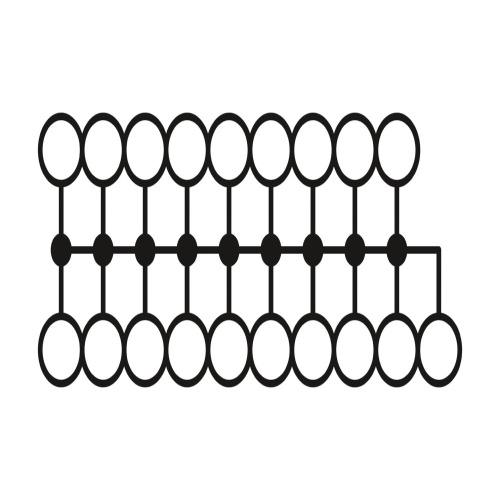

Phoenix Contact 3273114 A distribution block featuring a vertical alignment and integrated supply is characterized by its specifications, including a nominal voltage of 690V and a maximum current of 24A. The block has 19 connections available, with the connection method being push-in contact for load connections and line contacts, accommodating various cross-sectional areas from 0.14 mm² to 4 mm², or alternatively using push-in connections and line contacts rated at 6 mm². The mounting type is specified as NS 35/7,5 or NS 35/15, while the color of the block is red.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Voltage Rating
690 Volt
Terminal Block Number of Levels
1
Terminal Block Number of Connections
19
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Red
Terminal Block Width
28.6 mm
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features

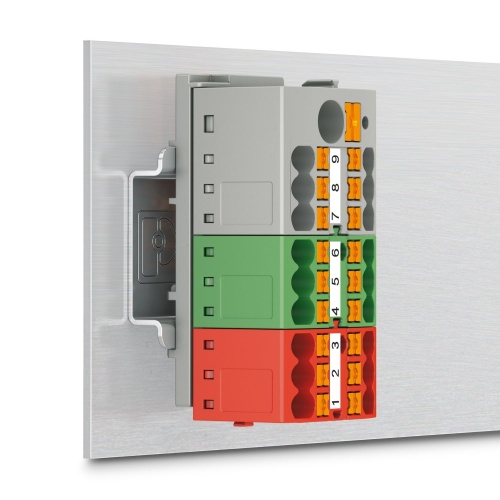

Space savings of up to 50 % on the DIN rail, thanks to transverse mounting
Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting
Time-saving conductor connection, thanks to tool-free Push-in direct connection technology
Time savings of up to 80 %, thanks to ready-to-mount blocks without manual bridging
Clear wiring, thanks to eleven different color variants
Downloads
Phoenix 3273114 CAD data International.dxfPhoenix 3273114 CAD data International.pdfPhoenix 3273114 CAD data International.stpPhoenix 3273114 Manufacturers declaration International-2.pdfPhoenix 3273114 Manufacturers declaration International.pdfPhoenix 3273114 Safety note English.pdfPhoenix 3273114 Tender Text English.zip
