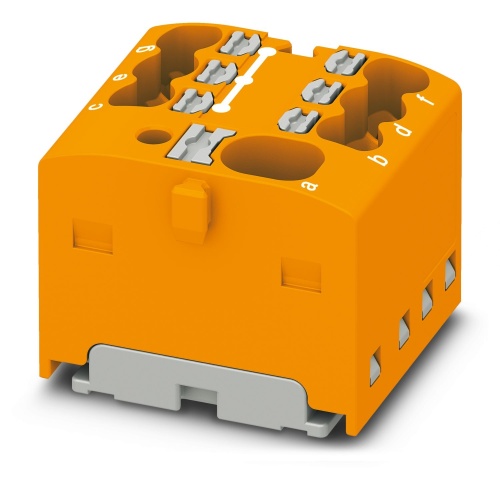

Phoenix Contact 1047487 Distribution block PTFIX 4/6X1,5-G OG
Normally In Stock
Code: 62521
PTFIX 4/6X1,5-G OG Phoenix 1047487 Distributor terminal block Push-in connection 450 V 17.5 Amp orange Terminal Blocks
Condition: New
Usually Ships Same day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$6.22
Sale Price
$5.18
MUST BUY IN PACKS OF 20
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1047487 The distribution block features a nominal voltage of 450V and a nominal current of 17.5A, requiring seven connections made via push-in contacts, while its load contact has a cross-sectional area ranging from 0.14-2.5mm², with a line contact rated for 6mm² and a cross-section area between 0.2-6mm², mounted using an adhesive method and distinguished by an orange color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Width
19 mm
Terminal Block Number of Connections
7
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Orange
Terminal Block Max Wire Size
14
Terminal Block Amperage
17.5 Amp
Terminal Block Voltage Rating
450 Volt
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features
Fast installation with ready-to-connect distribution blocks and device terminal blocks
Significant space savings due to the minimal size
Flexible mounting options with various mounting adapters and special adhesive versions
Color-coded assignment of conductors and terminal points for intuitive and safe installation
Standardized accessories – the blocks can be extended, tested, and marked with the CLIPLINE complete accessories without any loss of pitch
Downloads
Phoenix 1047487 CAD data International.dxfPhoenix 1047487 CAD data International.pdfPhoenix 1047487 CAD data International.stpPhoenix 1047487 Manufacturers declaration International-2.pdfPhoenix 1047487 Manufacturers declaration International.pdfPhoenix 1047487 Package Slip International.pdfPhoenix 1047487 Safety note English.pdfPhoenix 1047487 Tender Text English.zip
