Phoenix Contact 1132641 Knife-disconnect terminal block UT 2,5-MT RD
Normally In Stock
Code: 62416
UT 2,5-MT RD Phoenix 1132641 Disconnect terminal block Screw connection 400 V 20 Amp red Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$4.85
Sale Price
$4.04
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

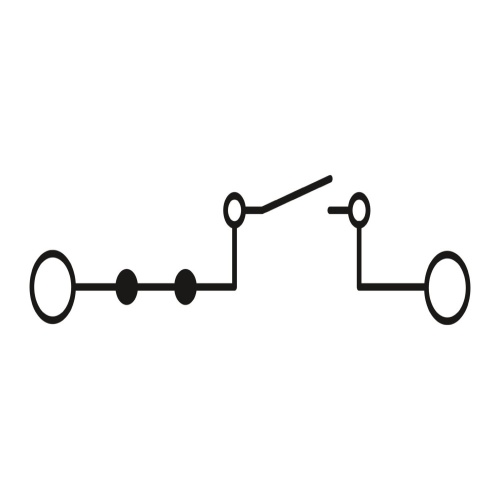

Phoenix Contact 1132641 A knife-disconnect terminal block with a nominal voltage of 400 V and a nominal current capacity of 20 A is available. It features a screw connection method and has a rated cross-sectional area of 2.5 mm2, with a usable cross-section range of 0.14 mm2 to 4 mm2. The mounting options are NS 35/7.5 and NS 35/15, and it is identified by its distinctive red color code.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Component Color
Red
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
Double bridge shaft enables individual potential distribution and supply
Tested for railway applications
