Phoenix Contact 3006784 Knife-disconnect terminal block ZDMTK 2,5 BU
Normally In Stock
Code: 62412
ZDMTK 2,5 BU Phoenix 3006784 Disconnect terminal block Spring-cage connection 400 V 16 Amp blue Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$26.18
Sale Price
$21.82
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

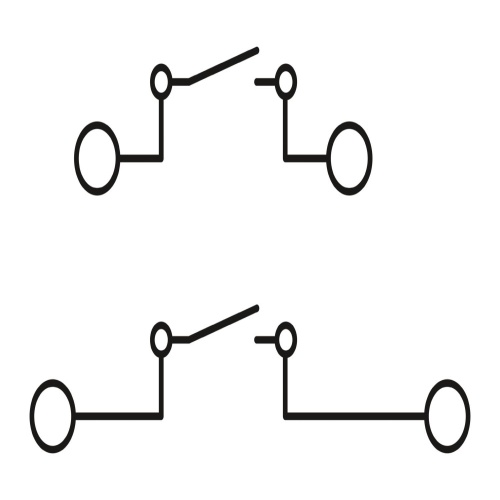

Phoenix Contact 3006784 The knife-disconnect terminal block has a nominal voltage of 400V and a nominal current capacity of 16A, with two levels of connections using spring-cage connection methods. The cross-sectional ratings range from 0.2mm² to 4mm² for the first level and also from 0.2mm² to 4mm² for the second level. It can be mounted on NS35/7.5 or NS35/15 and has a blue color designation.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Amperage
16 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
Disconnect knife for one level
Downloads
Phoenix 3006784 CAD data International.dxfPhoenix 3006784 CAD data International.pdfPhoenix 3006784 CAD data International.stpPhoenix 3006784 Manufacturers declaration International-2.pdfPhoenix 3006784 Manufacturers declaration International.pdfPhoenix 3006784 Safety note English.pdfPhoenix 3006784 Tender Text English.zip
