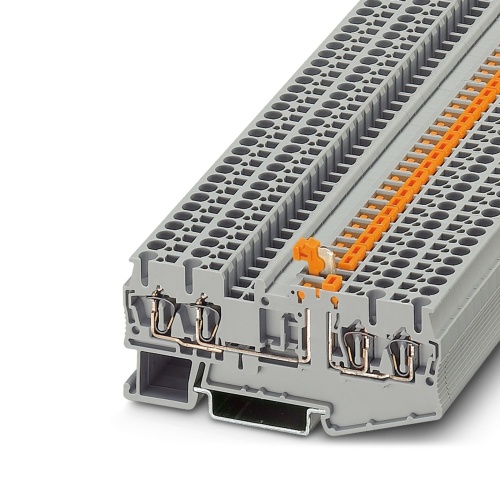

Phoenix Contact 3036576 Knife-disconnect terminal block ST 2,5-QUATTRO-MT
Normally In Stock
Code: 62408
ST 2,5-QUATTRO-MT Phoenix 3036576 Disconnect terminal block Spring-cage connection 400 V 20 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$7.33
Sale Price
$6.11
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3036576 The knife-disconnect terminal block has a nominal voltage of 400V and a maximum current rating of 20A, with a spring-cage connection method. It is designed to accommodate cross sections between 0.08mm2 and 4mm2, and can be mounted using the NS35/7.5 or NS35/15 mounting types, with a standard color code of gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
Three and four-conductor terminal blocks can be used for multi-conductor connections
User-friendly wiring thanks to front connection
Consistent and can be double bridged for all tasks in time-saving potential supply and distribution
Test pick-off parallel to the disconnect point for test plugs with 2.3 mm diameter
Compact knife disconnect terminal block with a current carrying capacity of 20 A
Tested for railway applications
Downloads
Phoenix 3036576 CAD data International.dxfPhoenix 3036576 CAD data International.pdfPhoenix 3036576 CAD data International.stpPhoenix 3036576 Data Sheet English.pdfPhoenix 3036576 Manufacturers declaration International-2.pdfPhoenix 3036576 Manufacturers declaration International.pdfPhoenix 3036576 Safety note English.pdfPhoenix 3036576 Tender Text English.zip
