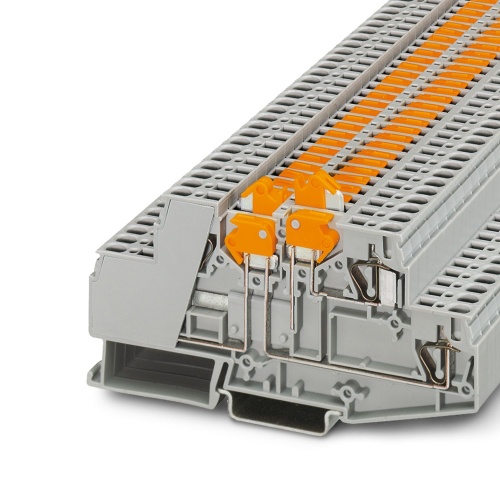

Phoenix Contact 3005798 Knife-disconnect terminal block ZDMTK 2,5
Normally In Stock
Code: 62407
ZDMTK 2,5 Phoenix 3005798 Disconnect terminal block Spring-cage connection 400 V 16 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$26.35
Sale Price
$21.96
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3005798 A knife-disconnect terminal block is available with a nominal voltage of 400V and a maximum current of 16A, suitable for both first and second-level connections using spring-cage methods. The rated cross-sections range from 0.2mm² to 4mm², while the mounting options are NS35/7.5 and NS35/15 with a color coding of gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Amperage
16 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
Disconnect knife for one level
Downloads
Phoenix 3005798 CAD data International.dxfPhoenix 3005798 CAD data International.pdfPhoenix 3005798 CAD data International.stpPhoenix 3005798 Manufacturers declaration International-2.pdfPhoenix 3005798 Manufacturers declaration International.pdfPhoenix 3005798 Safety note English.pdfPhoenix 3005798 Tender Text English.zip
