Code: 62406

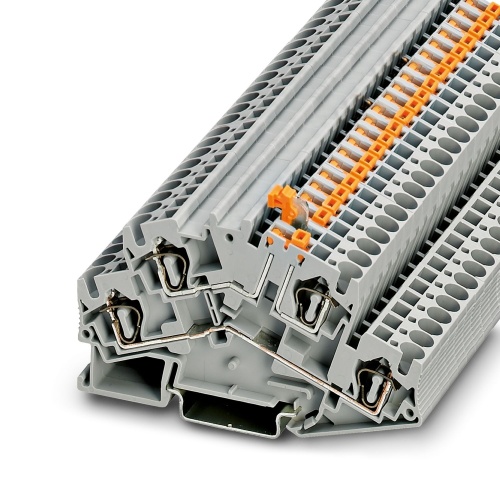

Phoenix Contact 3035470 Knife-disconnect terminal block STTBS 4-MT
Normally In Stock
STTBS 4-MT Phoenix 3035470 Disconnect terminal block Spring-cage connection 500 V 28 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$13.22
Sale Price
$11.02
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3035470 A knife-disconnect terminal block with a nominal voltage of 500 V and a maximum current rating of 28 A is available, featuring spring-cage connections. It has different rated cross-sectional areas, ranging from 0.08 mm2 to 6 mm2, and comes in various mounting types such as NS 35/7,5 and NS 35/15. The terminal block is typically gray in color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
28 Amp
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
Disconnect knife for one level
