Code: 62400

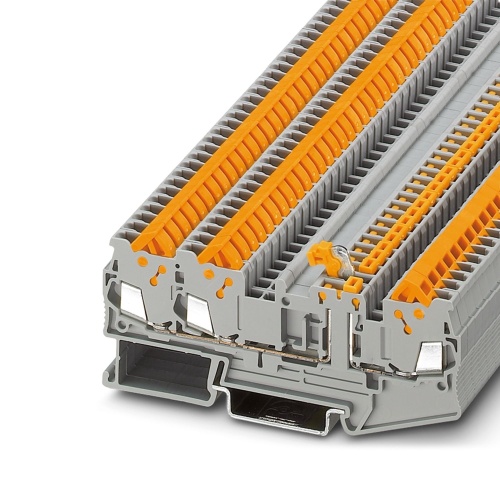

Phoenix Contact 3050407 Knife-disconnect terminal block QTC 1,5-TWIN-MT
Normally In Stock
QTC 1,5-TWIN-MT Phoenix 3050407 Disconnect terminal block Quick connection 400 V 17.5 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$10.06
Sale Price
$8.38
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3050407 A knife-disconnect terminal block with specifications including a nominal voltage of 400 V and a nominal current of 17.5 A is being described. The connection method is quick and the rated cross-sectional area ranges from 0.25 mm2 to 1.5 mm2, with a specific mounting type designated as NS 35/7,5, and a color of gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Connection Method
Quick Connection
Terminal Block Max Wire Size
16
Terminal Block Amperage
17.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Model Type
QTC
Features
Tested for railway applications
Downloads
Phoenix 3050407 CAD data International.dxfPhoenix 3050407 CAD data International.pdfPhoenix 3050407 CAD data International.stpPhoenix 3050407 Manufacturers declaration International-2.pdfPhoenix 3050407 Manufacturers declaration International.pdfPhoenix 3050407 Safety note English.pdfPhoenix 3050407 Tender Text English.zip
