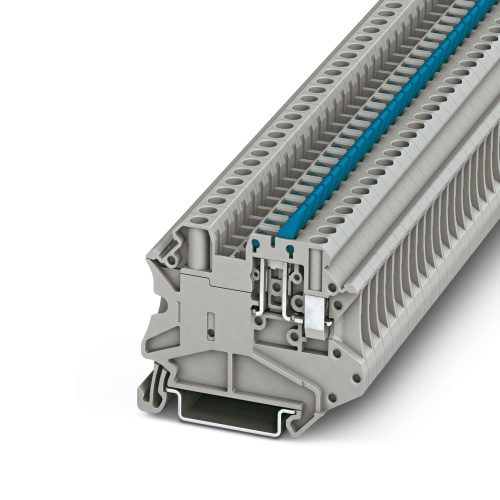

Phoenix Contact 1106768 Knife-disconnect terminal block UT 4-MTL-P/P KNIFE-BU
Normally In Stock
Code: 62399
UT 4-MTL-P/P KNIFE-BU Phoenix 1106768 Disconnect terminal block Screw connection 500 V 20 Amp blue Terminal Blocks
Condition: New
Usually Ships Same day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$6.29
Sale Price
$5.24
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1106768 The knife-disconnect terminal block has a latch for activation and features a red disconnect knife, along with test socket screws that allow for the insertion of test plugs. It operates at 500V nominal voltage and 20A nominal current, utilizing screw connections for mounting. The rated cross-section is 2.5mm² but can vary between 0.14mm² to 6mm², and it's mounted using NS 35/7.5 and NS 35/15 standards, with a blue color scheme.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Blue
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
Compact design and high current carrying capacity of 20 A
