Code: 62398

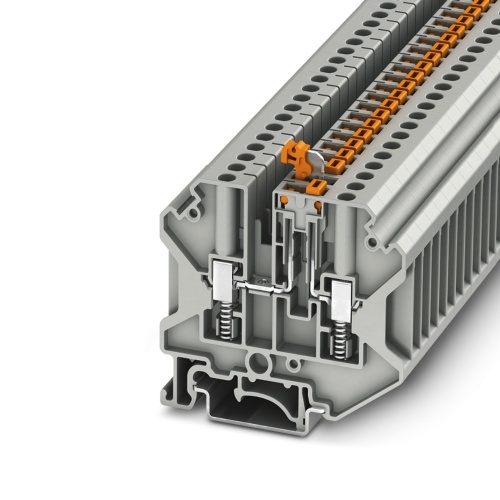

Phoenix Contact 3070300 Knife-disconnect terminal block USST 4-MT
Normally In Stock
USST 4-MT Phoenix 3070300 Disconnect terminal block Screw connection with spring support 500 V 20 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$8.92
Sale Price
$7.43
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3070300 A knife-disconnect terminal block is available with a 500V nominal voltage and a 20A nominal current rating, featuring a single level connection method secured by a screw connection with spring support. The rated cross-section is 4mm2, with a minimum of 0.2mm2 to a maximum of 6mm2, suitable for mounting on various configurations including NS35/7.5, NS35/15, and NS32 models.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
Convenient separation of circuits with a lever-type disconnect knife, isolating plug, or rotary contact
User-friendly current measurement via the testing option on either side of the disconnect point
Safe operation, as the disconnect lever is latched in the end positions
Clear identification of the disconnect point with color marking
Individual assembly with disconnect element, fuse plug, component connector, and feed-through connector
Downloads
Phoenix 3070300 CAD data International.dxfPhoenix 3070300 CAD data International.pdfPhoenix 3070300 CAD data International.stpPhoenix 3070300 Manufacturers declaration English.pdfPhoenix 3070300 Manufacturers declaration International.pdfPhoenix 3070300 Safety note English.pdfPhoenix 3070300 Tender Text English.zip
