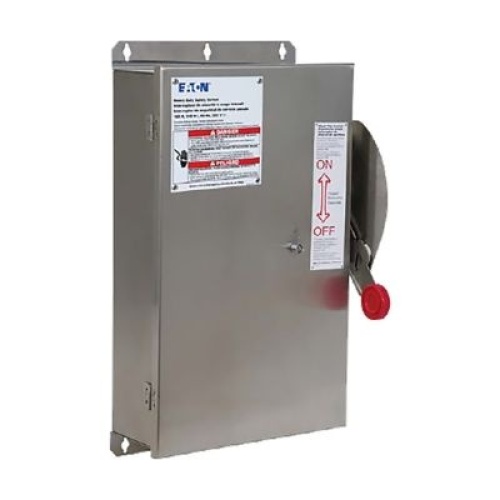

Eaton STS363NW1 Shunt Trip Safety Switch - 100 Amp, NEMA 4X, Three Pole, 304 Stainless Steel, 600 VAC, 250 VDC
Normally In Stock
Code: 623979
Eaton STS363NW1 Shunt Trip Safety Switch - 100 Amp, NEMA 4X, Three Pole, 304 Stainless Steel, 600 VAC, 250 VDC
Condition: New
Usually ships Same Day or Next Day$7270.93
Sale Price
$6059.11
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton STS363NW1 - Shunt trip safety switch, 100 A, Coil V: 24 Vac, NEMA 4X, Grade 304 stainless steel, 600 V, Three-pole, Fusible with neutral
Specifications
Enclosure Composition
304 Stainless Steel
Enclosure NEMA Rating
NEMA 4X
Component
Fusible Disconnect Switch
Manufacturer
Eaton
Disconnect Enclosure Height
24.95 In
Disconnect Enclosure Depth
11.51 In
Enclosure Disconnect Type
Shunt Trip Safety Switch
Features
Standard heavy-duty safety switch design with integrated shunt trip module
Integral arc energy reduction system available (NEC 240.67)
Integral ground fault protection available for 480 VAC service entrance applications (NEC 230.95)
Works with emergency stop pushbuttons and other remote signaling means to quickly disconnect power from equipment
Provides a safety switch solution for oil and gas, industrial plants, utilities, commercial construction and water and wastewater treatment applications
Includes two-, three- and four-pole configurations for maximum system voltages of 600 VAC with fusible and non-fusible protection options
Meets Underwriters Laboratories (UL) standards and is listed to the UL98 standard
Provides a variety of coil voltages, visible means of disconnect, and a standard heavy duty safety switch with integrated shunt trip module
Passes Class 1 ground fault testing (1200% opening)
