Code: 62397

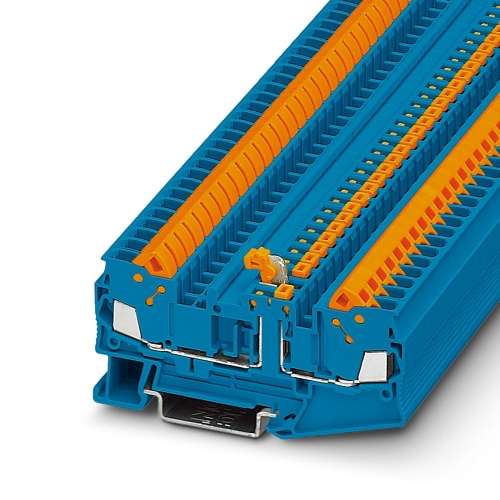

Phoenix Contact 3205226 Knife-disconnect terminal block QTC 2,5-MT BU
Normally In Stock
QTC 2,5-MT BU Phoenix 3205226 Disconnect terminal block Quick connection 400 V 20 Amp blue Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$5.12
Sale Price
$4.27
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3205226 A knife-disconnect terminal block with a nominal voltage of 500 V and nominal current of 20 A is available for quick connection, featuring a rated cross-sectional area of 2.5 mm² and ranging from 0.5 mm² to 2.5 mm² in actual cross-section, suitable for mounting on an NS 35/7,5, with a blue color scheme.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
20
Terminal Block Connection Method
Quick Connection
Terminal Block Max Wire Size
14
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
Convenient separation of circuits with a lever-type disconnect knife, isolating plug, or rotary contact
User-friendly current measurement via the testing option on either side of the disconnect point
Safe operation, as the disconnect lever is latched in the end positions
Clear identification of the disconnect point with color marking
Individual assembly with disconnect element, fuse plug, component connector, and feed-through connector
Downloads
Phoenix 3205226 CAD data International.dxfPhoenix 3205226 CAD data International.pdfPhoenix 3205226 CAD data International.stpPhoenix 3205226 Manufacturers declaration International-2.pdfPhoenix 3205226 Manufacturers declaration International.pdfPhoenix 3205226 Safety note English.pdfPhoenix 3205226 Tender Text English.zip
