Code: 62393

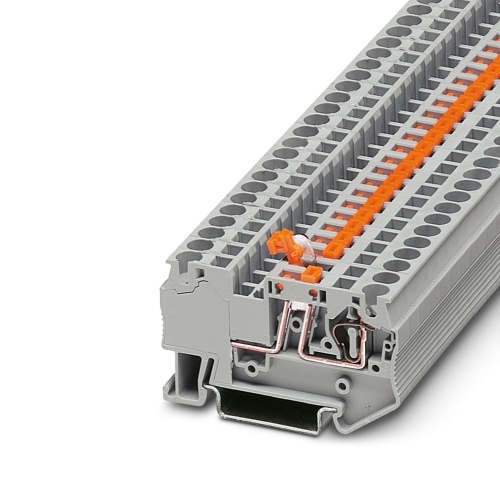

Phoenix Contact 3038875 Knife-disconnect terminal block ST 4-MT
Normally In Stock
ST 4-MT Phoenix 3038875 Disconnect terminal block Spring-cage connection 400 V 20 Amp gray Terminal Blocks
Condition: New
Usually ships within 7-14 days. Call for ship time.$7.62
Sale Price
$6.35
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3038875 The knife-disconnect terminal block features a nominal voltage of 400 V and a maximum current capacity of 20 A in a single level configuration, utilizing a spring-cage connection method. The rated cross-sectional area is specified as 4 mm2, while the actual cross-sectional areas can range between 0.08 mm2 to 6 mm2 for varying applications. It can be mounted using the NS 35/7,5 or NS 35/15 standards and has a standard color designation of gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
Three and four-conductor terminal blocks can be used for multi-conductor connections
User-friendly wiring thanks to front connection
Tested for railway applications
Test pick-off parallel to the disconnect point for test plugs with 2.3 mm diameter
Compact knife disconnect terminal block with a current carrying capacity of 20 A
Consistent and can be double bridged for all tasks in time-saving potential supply and distribution
Downloads
Phoenix 3038875 CAD data International.dxfPhoenix 3038875 CAD data International.pdfPhoenix 3038875 CAD data International.stpPhoenix 3038875 Manufacturers declaration International-2.pdfPhoenix 3038875 Manufacturers declaration International.pdfPhoenix 3038875 Safety note English.pdfPhoenix 3038875 Tender Text English.zip
