Code: 62392

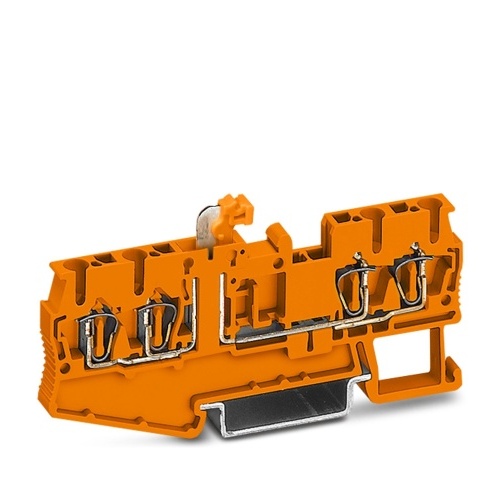

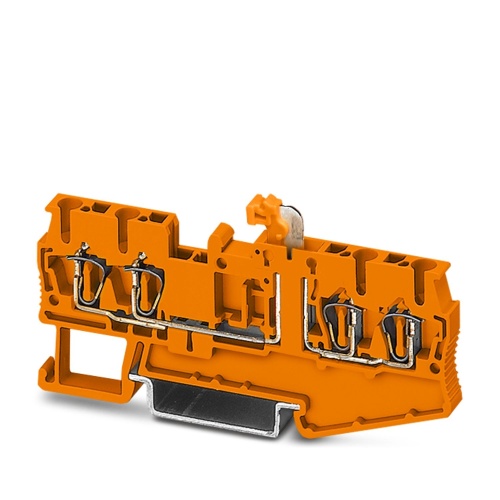

Phoenix Contact 3037892 Knife-disconnect terminal block ST 2,5-QUATTRO-MT OG
Normally In Stock
ST 2,5-QUATTRO-MT OG Phoenix 3037892 Disconnect terminal block Spring-cage connection 400 V 20 Amp orange Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$7.87
Sale Price
$6.56
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3037892 The knife-disconnect terminal block features a nominal voltage of 400V and a maximum current capacity of 20A, utilizing a spring-cage connection method. Its rated cross-sectional area is 2.5mm², with a minimum to maximum area range of 0.08-4mm². The mounting options include NS35/7.5 and NS35/15, and the terminal block is distinguished by its orange coloration.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Component Color
Orange
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
Convenient separation of circuits with a lever-type disconnect knife, isolating plug, or rotary contact
User-friendly current measurement via the testing option on either side of the disconnect point
Safe operation, as the disconnect lever is latched in the end positions
Clear identification of the disconnect point with color marking
Individual assembly with disconnect element, fuse plug, component connector, and feed-through connector
Downloads
Phoenix 3037892 CAD data International.dxfPhoenix 3037892 CAD data International.pdfPhoenix 3037892 CAD data International.stpPhoenix 3037892 Manufacturers declaration International-2.pdfPhoenix 3037892 Manufacturers declaration International.pdfPhoenix 3037892 Safety note English.pdfPhoenix 3037892 Tender Text English.zip
