Code: 62391

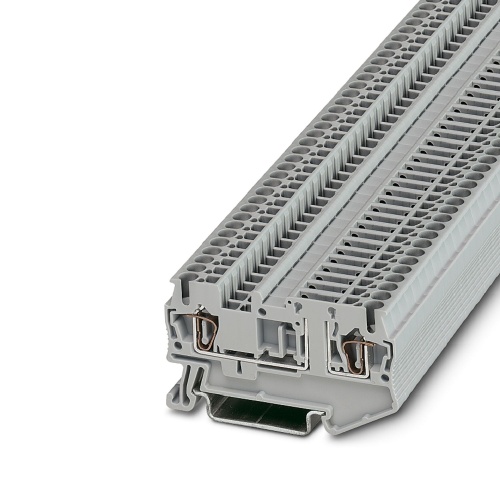

Phoenix Contact 3038435 Disconnect terminal block ST 2,5-TG
Normally In Stock
ST 2,5-TG Phoenix 3038435 Disconnect terminal block Spring-cage connection 400 V 20 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$3.53
Sale Price
$2.94
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3038435 The terminal block is disconnected to determine the current and voltage settings, with a nominal voltage of 400V and a nominal current of 20A using a spring-cage connection method. The rated cross-sectional area ranges from 0.08mm2 to 4mm2, depending on the specific mounting bracket type (NS35/7.5 or NS35/15) and color, with all options displaying a gray finish.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Disconnect
Removable Disconnect
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Features
Tested for railway applications
Downloads
Phoenix 3038435 CAD data International.dxfPhoenix 3038435 CAD data International.pdfPhoenix 3038435 CAD data International.stpPhoenix 3038435 Data Sheet English.pdfPhoenix 3038435 Manufacturers declaration International.pdfPhoenix 3038435 Safety note English.pdfPhoenix 3038435 Tender Text English.zip
