Code: 62388

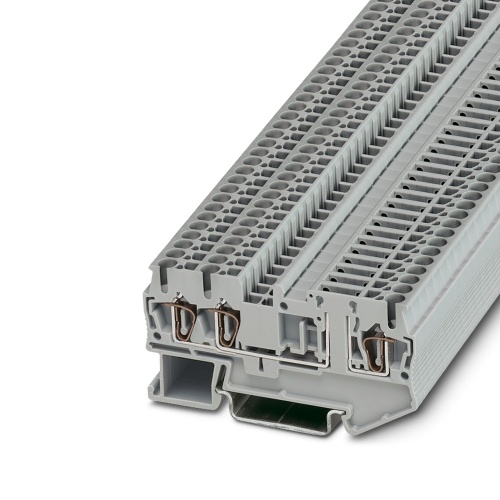

Phoenix Contact 3038448 Disconnect terminal block ST 2,5-TWIN-TG
Normally In Stock
ST 2,5-TWIN-TG Phoenix 3038448 Disconnect terminal block Spring-cage connection 400 V 20 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$4.19
Sale Price
$3.49
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3038448 To ensure safe operation, disconnect the terminal block as it is not designed to handle loads exceeding the total current of all connected conductors. The maximum load current must be determined based on the plug used, which dictates both the nominal voltage and current rating, set at 400V and 20A respectively with a spring-cage connection method being specified. Furthermore, the cross section area of the conductor is limited to between 0.08 mm2 and 4 mm2, while mounting hardware options include NS35/7.5 and NS35/15 with gray colour coding.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Disconnect
Removable Disconnect
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Features
Tested for railway applications
Downloads
Phoenix 3038448 CAD data International.dxfPhoenix 3038448 CAD data International.pdfPhoenix 3038448 CAD data International.stpPhoenix 3038448 Data Sheet English.pdfPhoenix 3038448 Manufacturers declaration International.pdfPhoenix 3038448 Safety note English.pdfPhoenix 3038448 Tender Text English.zip
