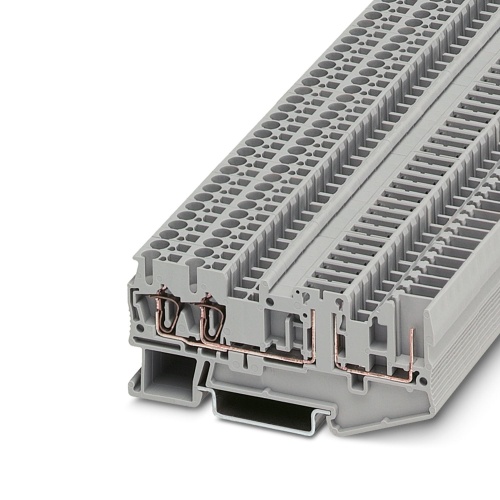

Phoenix Contact 3040847 Disconnect terminal block ST 2,5-TWIN-TG/1P
Normally In Stock
Code: 62386
ST 2,5-TWIN-TG/1P Phoenix 3040847 Disconnect terminal block Spring-cage/plug-in connection 400 V 20 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$4.22
Sale Price
$3.52
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3040847 The terminal block should be disconnected first, as the maximum allowed load current must not exceed the total current of all connected conductors, which is also determined by the type of plug used. The specifications for this plug include a nominal voltage of 400V and a nominal current capacity of 20A. The connection method is spring-cage/plug-in, with rated cross sections ranging from 0.08 mm2 to 4 mm2 and mounting options including NS35/7.5 and NS35/15, all of which come in gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Disconnect
Removable Disconnect
Terminal Block Connection Method
Plug Connection
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Features
Tested for railway applications
Design width of just 5.2 mm
