Code: 62385

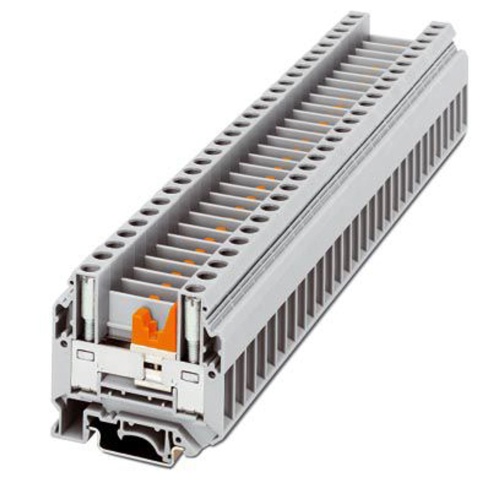

Phoenix Contact 0309112 Disconnect terminal block URTK-BEN
Normally In Stock
URTK-BEN Phoenix 0309112 Disconnect terminal block Screw connection 500 V 70 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$18.64
Sale Price
$15.53
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 0309112 The terminal block has specific characteristics: it is screw connected with a voltage of 500 V and a current rating of 57 A. The cross-sectional area ranges from 0.5 mm2 to 16 mm2 and can be mounted using three types of mounting hardware: NS 35/7.5, NS 35/15, or NS 32. Additionally, the terminal block has a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Width
10.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
20
Terminal Block Disconnect
Removable Disconnect
Terminal Block Max Wire Size
6
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
70 Amp
Sub Component
Disconnect Terminal Block
Features

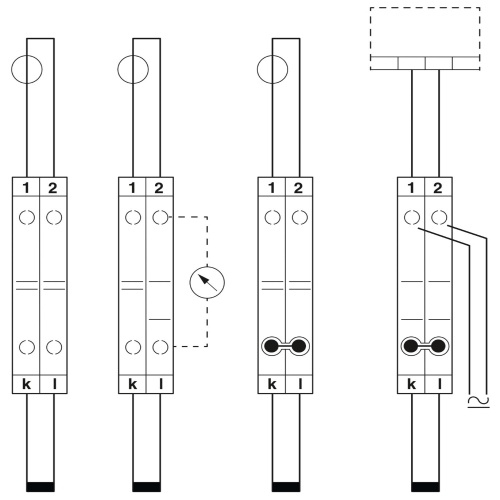

Convenient separation of circuits with a lever-type disconnect knife, isolating plug, or rotary contact

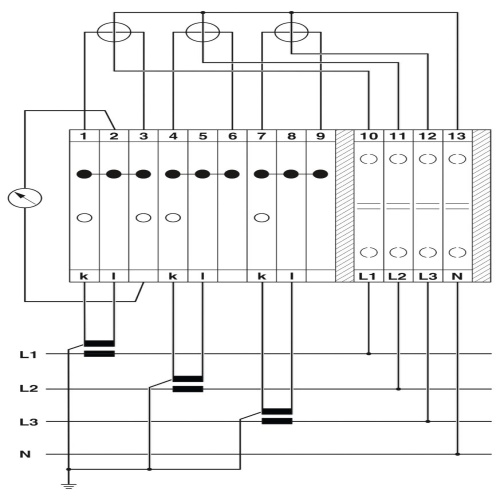

User-friendly current measurement via the testing option on either side of the disconnect point
Safe operation, as the disconnect lever is latched in the end positions
Clear identification of the disconnect point with color marking
Individual assembly with disconnect element, fuse plug, component connector, and feed-through connector
Downloads
Phoenix 0309112 CAD data International.dxfPhoenix 0309112 CAD data International.pdfPhoenix 0309112 CAD data International.stpPhoenix 0309112 Manufacturers declaration English.pdfPhoenix 0309112 Manufacturers declaration International.pdfPhoenix 0309112 Safety note English.pdfPhoenix 0309112 Tender Text English.zip
