Code: 62383

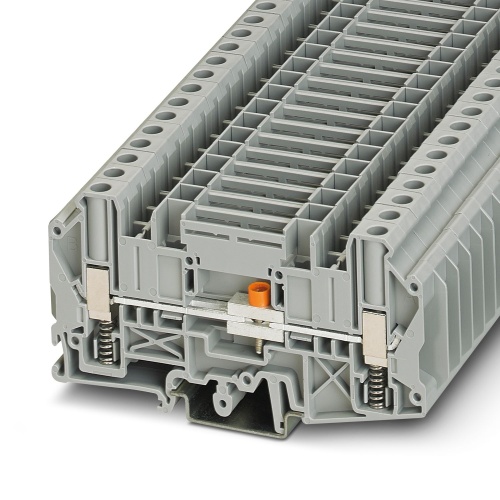

Phoenix Contact 3070330 Disconnect terminal block USST 6-T/SP
Normally In Stock
USST 6-T/SP Phoenix 3070330 Disconnect terminal block Screw connection 1000 V 41 Amp gray Terminal Blocks
Condition: New
Usually ships within 7-14 days. Call for ship time.$14.58
Sale Price
$12.15
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3070330 The terminal block has a spring support and is rated for a nominal voltage of 1000 V and a nominal current of 41 A. It uses a screw connection method with one level of rating, which falls within the acceptable cross-section range of 0.2 mm² to 10 mm². The mounting type includes NS35/7.5, NS35/15, and NS32, while it is colored gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
8
Terminal Block Disconnect
Removable Disconnect
Terminal Block Amperage
41 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Disconnect Terminal Block
Features
Convenient separation of circuits with a lever-type disconnect knife, isolating plug, or rotary contact

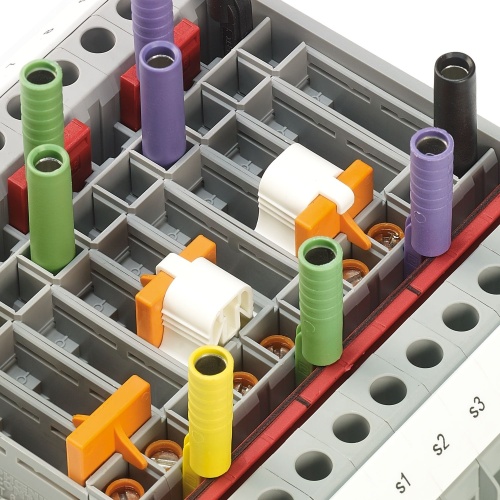

User-friendly current measurement via the testing option on either side of the disconnect point
Safe operation, as the disconnect lever is latched in the end positions
Clear identification of the disconnect point with color marking

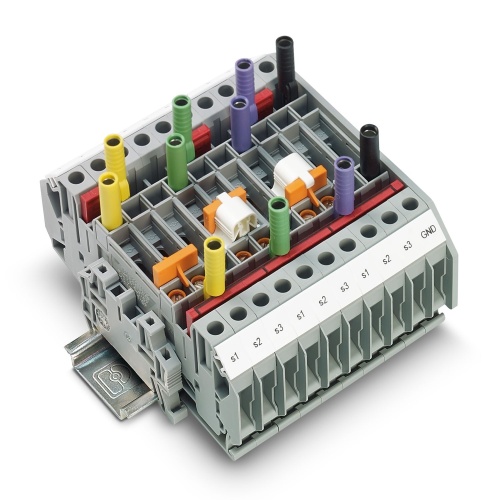

Individual assembly with disconnect element, fuse plug, component connector, and feed-through connector
Downloads
Phoenix 3070330 Application example International.klpPhoenix 3070330 CAD data International.dxfPhoenix 3070330 CAD data International.pdfPhoenix 3070330 CAD data International.stpPhoenix 3070330 Manufacturers declaration English.pdfPhoenix 3070330 Manufacturers declaration International.pdfPhoenix 3070330 Safety note English.pdfPhoenix 3070330 Tender Text English.zip
