Code: 62381

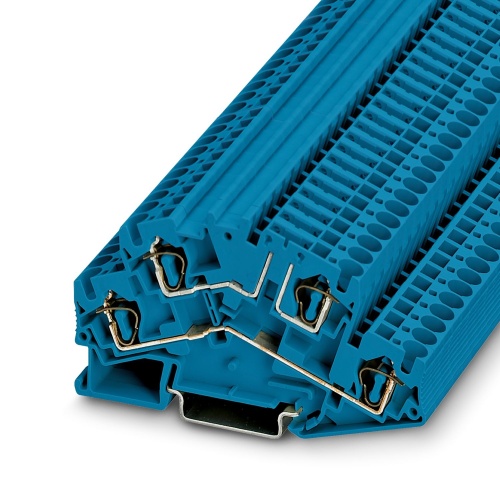

Phoenix Contact 3035535 Disconnect terminal block STTBS 4-TG BU
Normally In Stock
STTBS 4-TG BU Phoenix 3035535 Disconnect terminal block Spring-cage connection 500 V 20 Amp blue Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$11.59
Sale Price
$9.66
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3035535 The terminal block has specific parameters for connection and operation, including a nominal voltage of 500V, a maximum continuous current of 28A, and a spring-cage connection method. The rated cross-sectional area is between 2.5mm² to 6mm², and the mounting type can be either NS35/7.5 or NS35/15, with a blue color indicating its designation.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Disconnect
Removable Disconnect
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Features
Convenient separation of circuits with a lever-type disconnect knife, isolating plug, or rotary contact
User-friendly current measurement via the testing option on either side of the disconnect point
Safe operation, as the disconnect lever is latched in the end positions
Clear identification of the disconnect point with color marking
Individual assembly with disconnect element, fuse plug, component connector, and feed-through connector
