Code: 62380

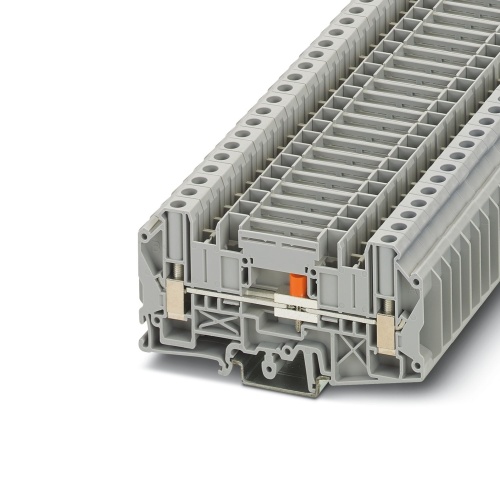

Phoenix Contact 3072815 Disconnect terminal block UT 6-T/SP
Normally In Stock
UT 6-T/SP Phoenix 3072815 Disconnect terminal block Screw connection 1000 V 41 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$9.74
Sale Price
$8.12
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3072815 The terminal block specifications include a nominal voltage of 1000V and an nominal current of 41A, with screws as the connection method. The rated cross-sectional area is 6mm2, spanning from 0.2mm2 to 10mm2, and can be mounted using either NS35/7.5 or NS35/15 types, while also featuring a gray color designation.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
8
Terminal Block Disconnect
Removable Disconnect
Terminal Block Amperage
41 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Disconnect Terminal Block
Features
Convenient separation of circuits with a lever-type disconnect knife, isolating plug, or rotary contact

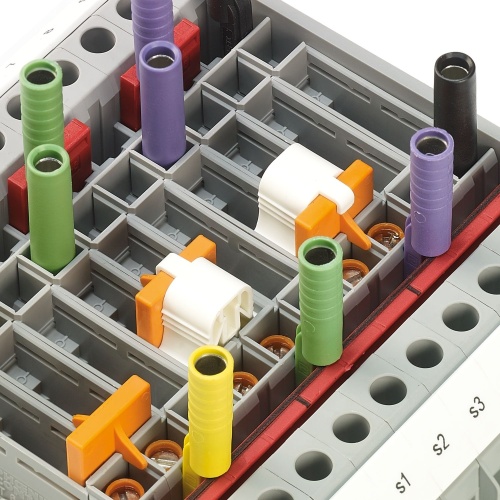

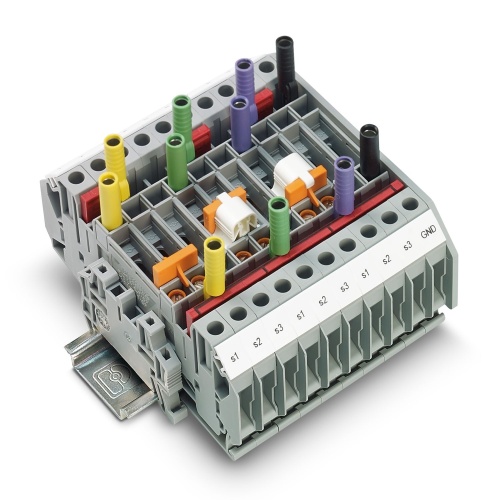

User-friendly current measurement via the testing option on either side of the disconnect point
Safe operation, as the disconnect lever is latched in the end positions
Clear identification of the disconnect point with color marking
Individual assembly with disconnect element, fuse plug, component connector, and feed-through connector
Downloads
Phoenix 3072815 Application example International.klpPhoenix 3072815 CAD data International.dxfPhoenix 3072815 CAD data International.pdfPhoenix 3072815 CAD data International.stpPhoenix 3072815 Manufacturers declaration English.pdfPhoenix 3072815 Manufacturers declaration International.pdfPhoenix 3072815 Safety note English.pdfPhoenix 3072815 Tender Text English.zip
