Phoenix Contact 3031597 Component terminal block STTB 2,5-2DIO/O-UL/O-UR
Normally In Stock
Code: 62353
STTB 2,5-2DIO/O-UL/O-UR Phoenix 3031597 Component terminal block Spring-cage connection 250 V 22 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$17.17
Sale Price
$14.31
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

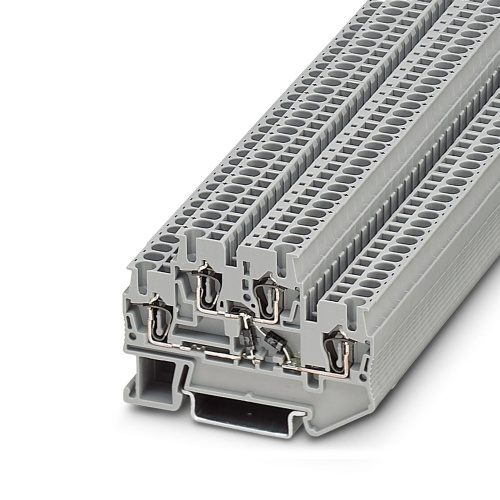

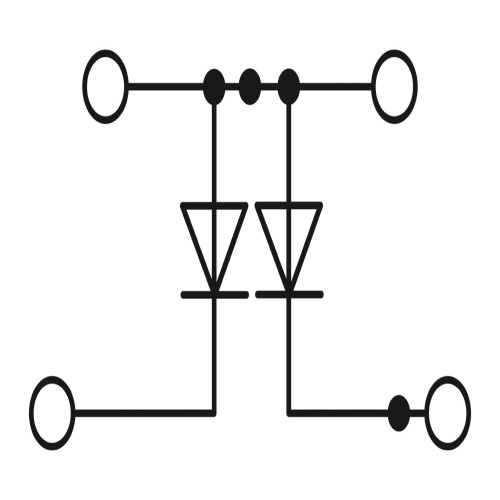

Phoenix Contact 3031597 A component terminal block comes with an integrated diode and features a nominal voltage of 250 V, accompanied by a nominal current of 0.5 A, which includes connections at both the first and second levels utilizing spring-cage attachment methods. The rated cross-section ranges between 2.5 mm2 and 4 mm2, while mounting options include NS 35/7,5 and NS 35/15, and the terminal block is colored gray.
Specifications
Terminal Block Voltage Rating
250 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
22 Amp
Sub Component
Component Terminal Block
Features
For more versions and versions for soldering in components yourself, visit phoenixcontact.com/products
Double-level diode and LED terminal blocks perform a wide range of switching tasks
Downloads
Phoenix 3031597 Tender Text English.zipPhoenix 3031597 Safety note English.pdfPhoenix 3031597 Manufacturers declaration International.pdfPhoenix 3031597 Manufacturers declaration English.pdfPhoenix 3031597 Data Sheet English.pdfPhoenix 3031597 CAD data International.stpPhoenix 3031597 CAD data International.pdfPhoenix 3031597 CAD data International.dxf
